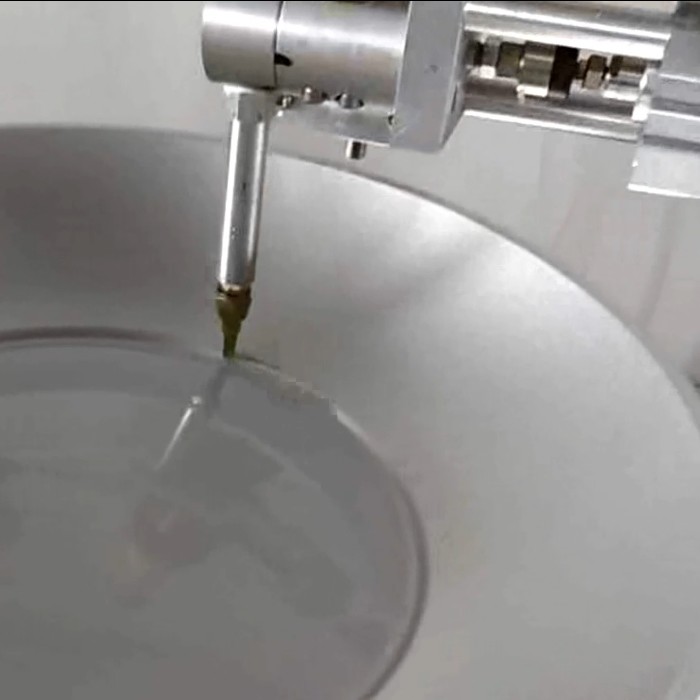

UFO lights or disc lights gluing process by round glue dispensing machine
Machine description
UFO lights or disc lights are generally round shape. During its assembly process, silicone glue may be requried to apply on the edge for bonding purpose. GDS single-station round glue dispensing machine can be used to quickly apply silicone on the product. It's a economical and practical small tool for UFO or disc lights manufacturer.
key advantages of using a round glue dispensing machine in UFO/disc light manufacturing processes:
Precision Circular Pattern Control
Enables uniform adhesive bead application along circular LED arrays
or housing edges, critical for maintaining symmetrical aesthetics
and structural integrity of UFO-shaped fixtures.
360° Omnidirectional Application
Rotary axis synchronization allows continuous glue dispensing
during rotation, eliminating start/stop marks and ensuring seamless
bonding for round PCB assemblies.
Diameter Adaptability
Programmable radius adjustment accommodates various UFO light sizes
(typically 200-600mm diameters) without mechanical reconfiguration.
Consistent Bead Quality
Closed-loop pressure control maintains adhesive consistency across
full circumference, preventing LED lens misalignment from viscosity
variations.
High-Speed Production Compatibility
Simultaneous rotation/dispensing achieves cycle times under 15
seconds per unit for industrial-scale UFO light
manufacturing.(depends on product size and glue nature)
Machine features
Technical parameters
Model | JD-10 |
MCU | Industrial PLC |
Programming | Text Demonstration Programmer |
Drive Mode | Precise Stepping Motor |
Max Dispensing Diameter | 400mm |
Motor Speed | 0 ~300RPM |
Positioning Accuracy | ±0.1mm |
Z-axis Adjust Range | 250mm |
Z-axis Working Travel | 50mm |
Dimension(L*W*H) | 420mm*532mm*532mm |
Weight | 28Kg |
Working Power | AC220V/50～60Hz/150W |
Working Air Pressure | 0.4~ 0.6Mpa(no condensation) |
Working Temperature and Humidity | Temperature: 0~40℃,Humidity: 20~90% |
Machine details
|
|
