Zhongshan GDS Automation Equipment Co., Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | GDS |
| Model Number : | JCD-80 |
| Certification : | CE |
| Price : | CONTACT US |
| Supply Ability : | 30 Pieces/Month |
| Delivery Time : | 7 working days |

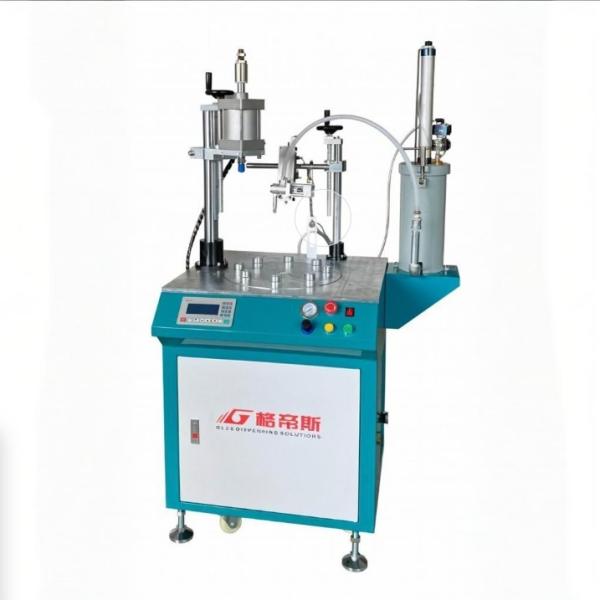

automatic PCB punching and glue dispensing machine for LED T-bulb
Machine description
Eight stations are distributed on the revolution disc by 45 degree. The revolution motor rotates 45 degree each time to bring
two work-pieces to the punching station and gluing station. After punching, the work-piece will be brought to gluing station.
Auto-revolution motor drives the work-piece rotating in average speed to achieve evenly glue coating.
Machine features
Technical parameters
Model | JCD-80 |
MCU | Industrial PLC |
Programming | Text Demonstration Programmer |
Drive mode | Precise Stepping Motor |
Max Dispensing Diameter | 280mm(two-station), 200mm(four -station), 110mm(eight-station) |
Motor Speed | 0 ~ 300 RPM |
Positioning Accuracy | ±0.1mm |
Z-axis Adjust Range | 250mm |
Z-axis Working Travel | 50mm |
Dimension (L*W*H) | L680mm*W700mm*H1520mm |
Weight | 190Kg |
Working Power | AC220V/50～60Hz/200W |
Working Air Pressure | 0.4~ 0.6Mpa(no condensation) |
Working Temperature and Humidity | Temperature: 0~40℃ Humidity: 20~90% |
Machine details
|
|
