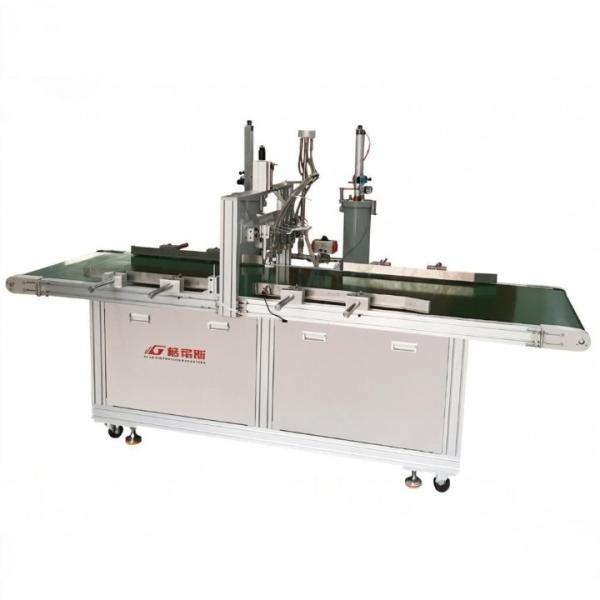

automatic on-line six heads glue dispensing machine for back-lit panel light assembly
Machine Description
Boost efficiency and precision in back-lit panel light assembly with our state-of-the-art Automatic Online Six-Head Glue Dispensing Machine—seeking flawless adhesive application. Designed for high-volume production lines, this system ensures consistent, high-speed gluing while minimizing material waste and human error.
Equipped with six glue dispensing heads, the machine delivers unmatched flexibility, enabling simultaneous multi-lines dispensing for complex back-lit panel designs. The closed-loop pressure control maintains uniform adhesive flow.
Fully integrated with automated production lines, this PLC-controlled solution supports 24/7 operation. Compatible with silicone adhesives, it adapts to diverse panel sizes with maximum 6 PCB strips
By reducing glue consumption by 30% and doubling throughput compared to manual methods, our machine slashes production costs while elevating product quality. Eco-friendly features include solvent-free operation and a built-in waste recovery system.
Upgrade your back-lit panel manufacturing with the industry’s most energy-efficient, glue dispensing solution—where precision engineering meets smart automation.
Technical Parameters
Model | TC-30 |
Working range | 300*300mm,300*600mm,600*600mm |
Moving speed | Max≤300mm/sec |
Repeat accuracy | ±0.05mm |
Power source | Compressed air+cylinder |
Glue flow volume | Based on glue viscosity |
Glue tank volume | 2600mlbarrel |
Glue viscosity | Max≤20000CPS |
Control mode | PLC+touch screen |
Drive mode | Stepping motor+synchronous belt+linear guideway |
Working pressure | 0.5-0.8Mpa |
Working power | AC220V 50HZ / 2000W |
Working temperature | 0-40℃ |
Working humidity | 20-90% no condensation |
Dimension | 3200*1050*1530mm(WxDxH) |
weight | 300KG |
Machine Details
|
|
