back-lit panel light automatic glue dispensing machine with multi-heads for 2by2 2by4 panel light
back-lit panel light assembly requires glue application on the back of panel board. If it's done manually, this process will take much labor cost, and the gluing performance may be not good enough. GDS designed multi-heads glue dispensing machine specifically for back-lit panel. It can glue for 6 strips at the same time, more dispensing heads can be added if required. Compared with manual operation, this automatic glue dispenser can greatly increase efficiency and save labor cost.
Machine Features
Model | HTD-1265-6 |
MCU | Text Controller |
Programming | Teaching Programming |
Drive Mode | Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way |
Working Range(X*Y*Z) | 600*1200*100mm |
Max Moving Speed | MAX 500mm/sec |
Repeat Accuracy | ±0.02mm |
Program Memory Capacity | About 10000 units |
Dimension(L*W*H) | L2200*W800*H1200mm |
Weight | 220Kg |
Working Power | AC220V/50～60Hz/150W |
Working Air Pressure | 0.4 ~ 0.6Mpa (no condensation) |
Working Temperature and Humidity | Temperature: 0 ~ 40℃ Humidity:20 ~ 90% |

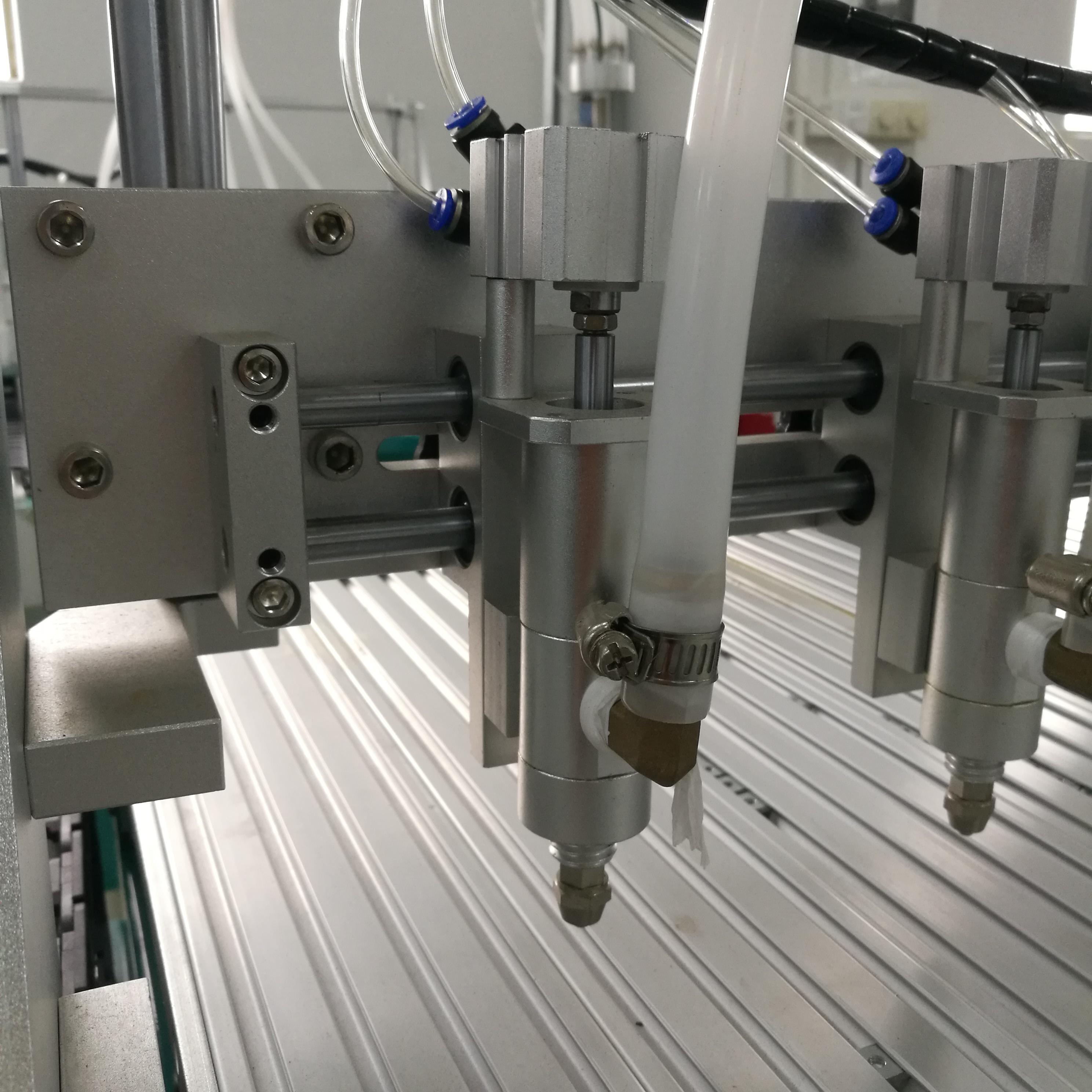

Machine Details
|
|
