| Brand Name : | GDS |
| Model Number : | JD-80 |
| Certification : | CE |
| Price : | CONTACT US |
| Supply Ability : | 30 Pieces/Month |
| Delivery Time : | 7 working days |

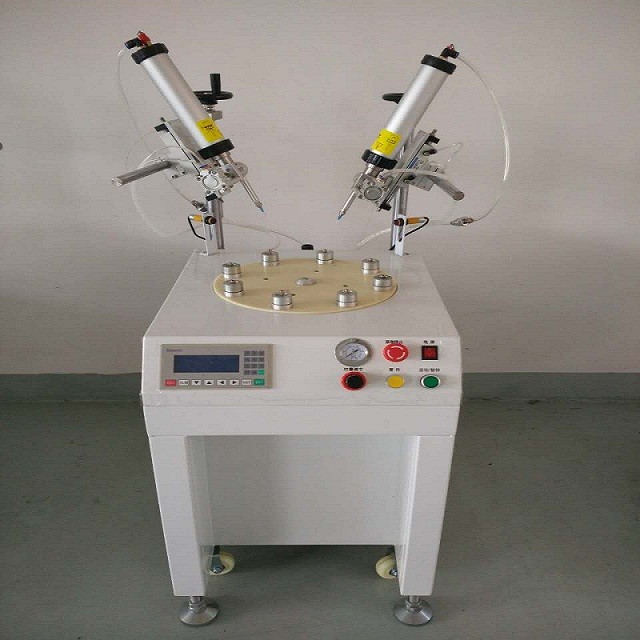

two dispensing heads with 8 rotating station glue dispensing machine for LED bulb production
Machine description

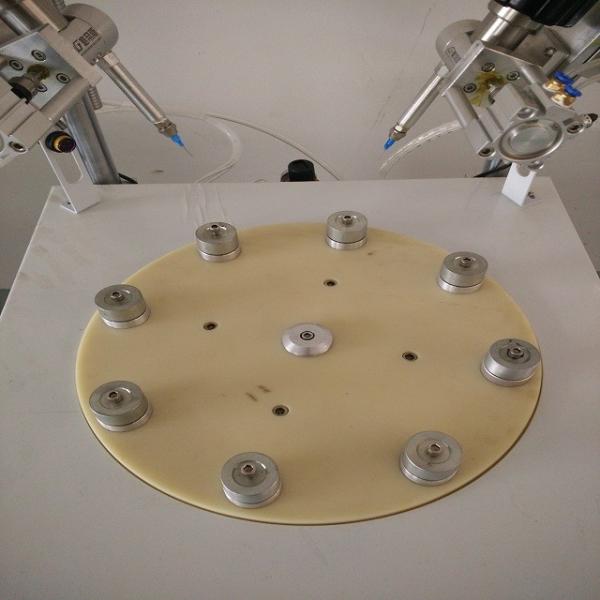

This automated glue application system uses a rotating platform divided into eight equally spaced positions. The smart rotating mechanism turns precisely by a quarter-circle (90 degrees) each time, efficiently moving two workpieces at once into position under the glue nozzle.
The system's clever design ensures smooth, steady rotation that spreads adhesive evenly around circular parts. By always moving two pieces simultaneously (placed opposite each other on the platform), it doubles productivity compared to single-piece systems while maintaining high positional accuracy.
Key advantages:
Efficient movement: Turns exactly 90° each cycle, aligning new parts every few seconds
Consistent quality: Controlled rotation speed creates uniform glue patterns
Double capacity: Processes two items per cycle without quality loss
Smart timing: Automatic adjustments for different glue types and drying needs
Stable operation: Balanced design prevents wobbling during rotation
The eight-position circle layout allows continuous workflow - operators can load/unload parts at one station while others are being coated. This setup is ideal for manufacturing ring-shaped products requiring full-edge bonding, combining speed with reliable results.
Machine features
Technical parameters
Model | JD-80 |
MCU | Industrial PLC |
Programming | Text Demonstration Programmer |
Drive mode | Precise Stepping Motor |
Max Dispensing Diameter | 280mm(two-station), 200mm(four -station), 110mm(eight-station) |
Motor Speed | 0 ~ 300 RPM |
Positioning Accuracy | ±0.1mm |
Z-axis Adjust Range | 250mm |
Z-axis Working Travel | 50mm |
Dimension (L*W*H) | 500mm*850mm*1300mm |
Weight | 50Kg |
Working Power | AC220V/50～60Hz/200W |
Working Air Pressure | 0.4~ 0.6Mpa(no condensation) |
Working Temperature and Humidity | Temperature: 0~40℃ Humidity: 20~90% |
Machine details
|
|
