six heads on-line glue dispensing machine for 2x4 back-lit panel light
Machine Description
In the fast-paced world of LED lighting manufacturing, precision and efficiency are critical to staying competitive. For businesses specializing in 2x4 back-lit panel lights, achieving flawless adhesive application while maintaining high throughput can be challenging. Enter the six-heads on-line glue dispensing machine—a practical solution designed to streamline your production process, reduce waste, and ensure consistent quality for back-lit panel light assemblies.
Why Choose a Six-Heads Glue Dispensing System?
Traditional single-head dispensers often struggle to meet the
demands of large-format LED panels like 2x4 back-lit fixtures. With
six independent dispensing heads, this advanced machine enables simultaneous glue application in
straight lines.
Key Benefits for 2x4 Back-Lit Panel Light Production:
High-Speed Performance: Complete complex glue patterns in seconds, boosting output for bulk orders.
Material Savings: Precision dispensing minimizes adhesive waste, reducing costs.
Seamless Integration: Designed for on-line integration with conveyor systems, supporting continuous, automated workflows.
Enhanced Durability: Robust construction ensures reliability in high-volume environments.
Smart Technology for Smarter Manufacturing
Equipped with intuitive touchscreen controls and programmable
recipes, this machine allows operators to switch between 2x4 panel
designs effortlessly. Real-time monitoring and automatic
calibration further enhance consistency, ensuring every back-lit
panel meets strict industry standards.
Technical Parameters
Model | TC-30 |
Working range | 300*300mm,300*600mm,600*600mm |
Moving speed | Max≤300mm/sec |
Repeat accuracy | ±0.05mm |
Power source | Compressed air+cylinder |
Glue flow volume | Based on glue viscosity |
Glue tank volume | 2600mlbarrel |
Glue viscosity | Max≤20000CPS |
Control mode | PLC+touch screen |
Drive mode | Stepping motor+synchronous belt+linear guideway |
Working pressure | 0.5-0.8Mpa |
Working power | AC220V 50HZ / 2000W |
Working temperature | 0-40℃ |
Working humidity | 20-90% no condensation |
Dimension | 3200*1050*1530mm(WxDxH) |
weight | 300KG |

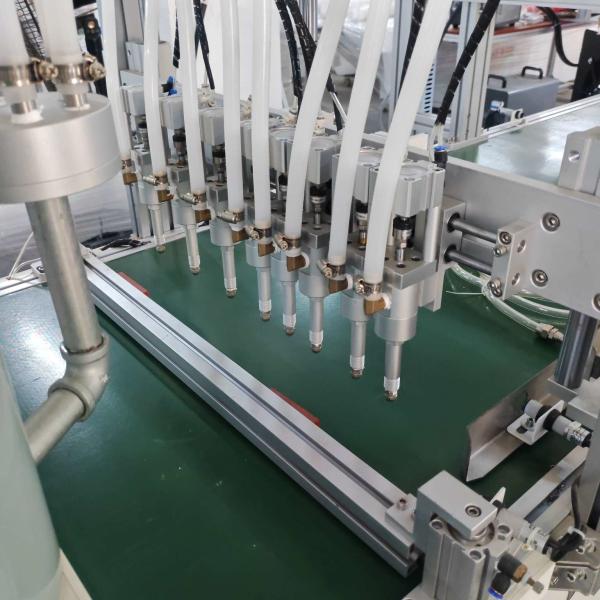

Machine Details
|
|
