    Six Heads Automated Glue Dispenser 3500W Silicone Dispensing System For Back Lit Panel Light

    Ask Lasest Price
    Brand Name : GDS
    Model Number : TC-6038
    Certification : CE
    Price : CONTACT US
    Payment Terms : T/T
    Supply Ability : 30Pcs/Mon
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    Six Heads Automated Glue Dispenser 3500W Silicone Dispensing System For Back Lit Panel Light

    automatic on-line six heads glue dispensing machine for back-lit panel light assembly

    Machine Description

    Machine is equipped with multiple glue dispensing heads according to panel light design. The glue dispensing system starts to dispense glue on the board when it reached the position.The pane board will be well glued while it’s moving forward. After gluing, it will be brought to the next PCB fixing station. PCB strips are placed on the fixture manually and will be sucked up and brought to the top position of glued panel board, then pressed down, PCB strip fixing done. Panel board will flow to the next assembly station or be piled up.


    Machine Features

    • Specially designed for back-lit panel light gluing, and PCB strip sticking
    • Designed capacity is about 300pcs/h(600*600mm panel)
    • Movement control +PLC, touch screen UI, easy to learn and operate
    • Speed adjustable conveyor transfer, matching worker operation speed ;
    • Conveyor can fit for different size of panel light;
    • Work-piece sensor available, automatically activate the glue valve, no need to press start button frequently;
    • Glue valve can be controlled independently. Glue flow is fast and accurate;
    • 2600ml big glue pot feeding, no need to change the glue package frequently

    Six Heads Automated Glue Dispenser 3500W Silicone Dispensing System For Back Lit Panel Light

    Technical Parameters

    Model

    TC-60

    MCU

    Movement Controller+PLC

    Programming

    Touch screen

    Drive mode

    Servo motor,stepping motor, adjustable-speed motor

    Max working range

    600*600*80mm

    Positioning accuracy

    ±0.2mm

    Dimension

    Lmax5500mm*Wmax2300mm*Hmax1500mm

    Weight

    700Kg

    Working power

    AC220-380V/5060Hz/ 3500W

    Working pressure

    0.4 ~ 0.6Mpa(no condensation)

    Working temperature and humidity

    Temperature:0 ~ 40 humidity:20 ~ 90%

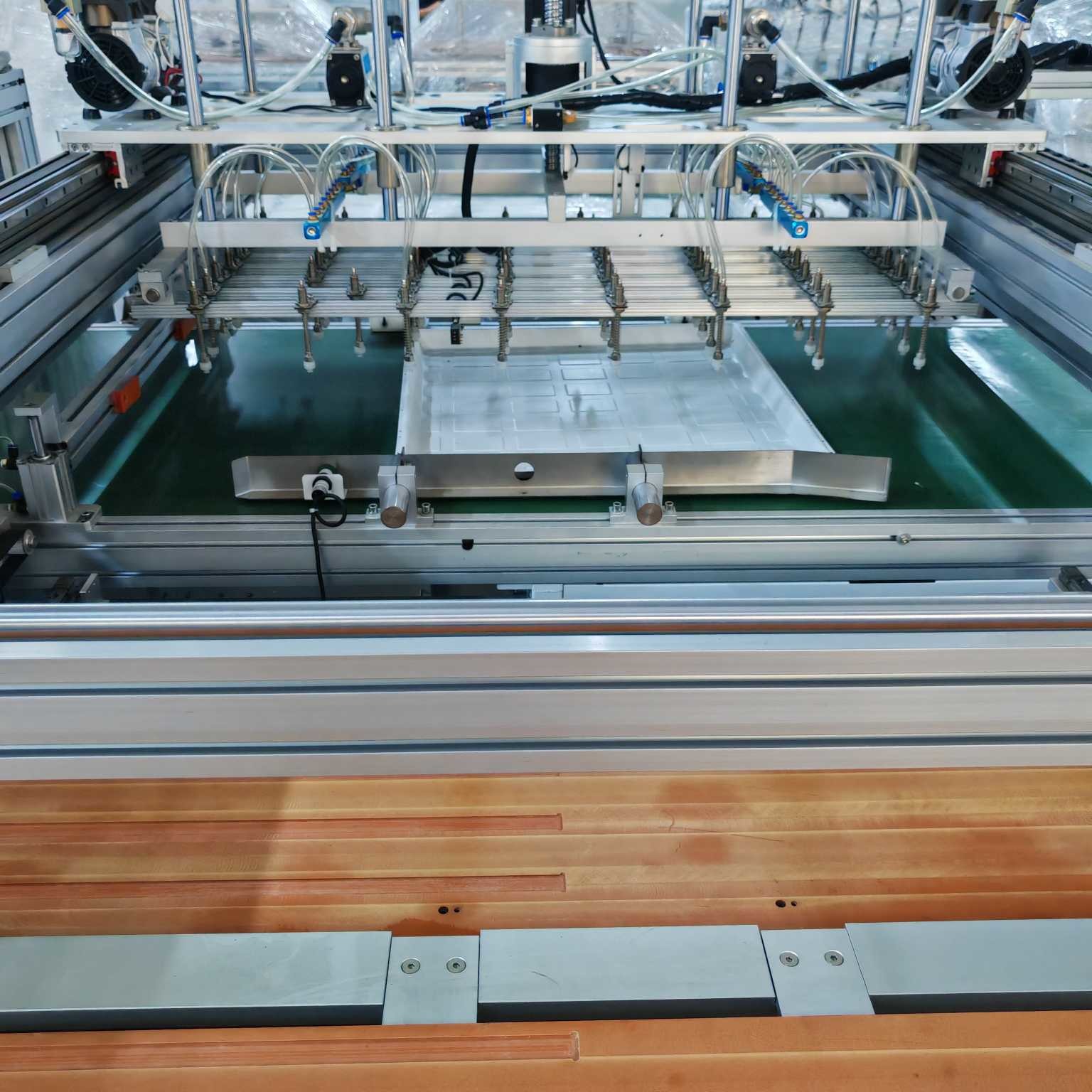

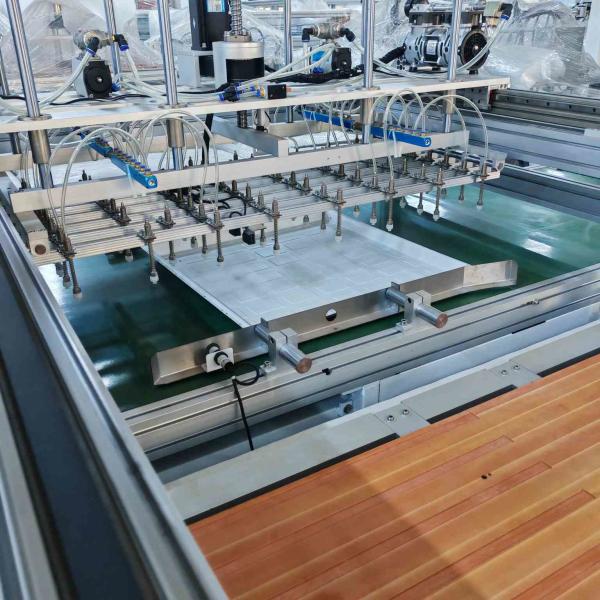

    Machine Details


    Six Heads Automated Glue Dispenser 3500W Silicone Dispensing System For Back Lit Panel Light Six Heads Automated Glue Dispenser 3500W Silicone Dispensing System For Back Lit Panel Light
