    220V PCB Assembly Machine 0.5Mpa - 0.8Mpa PCB Dispenser For LED T8 Glass Tube Lights

    Ask Lasest Price
    Certification : CE
    Supply Ability : 10PCS/MONTH
    Price : CONTACT US
    Brand Name : GDS
    Model Number : TD-1206
    Payment Terms : T/T
    Delivery Time : 15 WORKING DAYS
    • Product Details
    • Company Profile

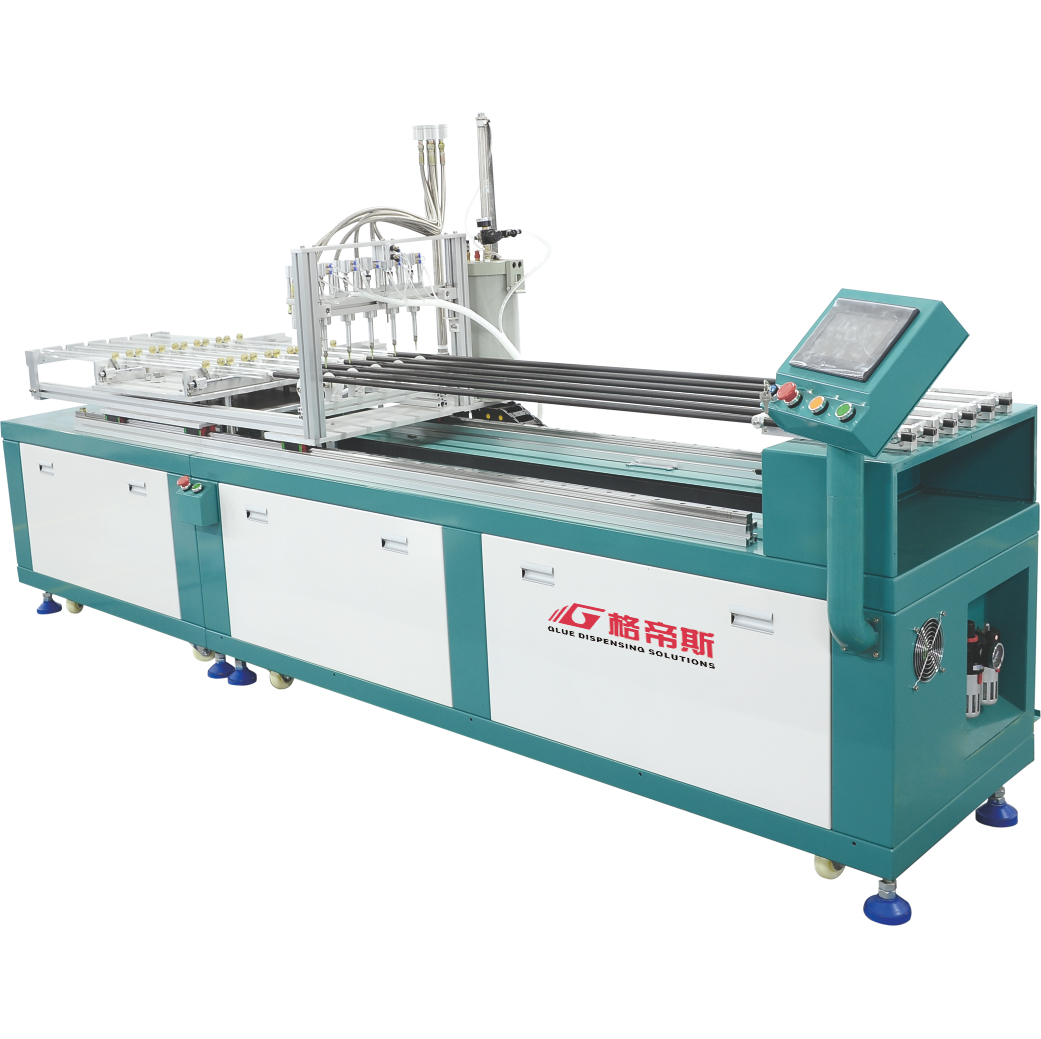

    220V PCB Assembly Machine 0.5Mpa - 0.8Mpa PCB Dispenser For LED T8 Glass Tube Lights

    PCB assembly machine for led T8 glass tube lights glue dispensing machine


    220V PCB Assembly Machine 0.5Mpa - 0.8Mpa PCB Dispenser For LED T8 Glass Tube Lights

    Principle Description

    Put six PCB strips downside on the fixture sticks. Six PCB strips on the fixture sticks are being glued while being inserted to the glass tube. The tubes press down for few seconds and stick with PCBs. The whole process is finished when the sticks are pulled out and tubes are transferred to the next work station.


    Machine Feature

    • Specially designed for T8/T5 glass tube, glue valves are working at the same time, the designed capacity is 400 pcs/h;
    • Standard model is suitable for tubes in length of 600mm,900mm,1200mm(bigger size needs customization);
    • Equipped independent dispensing valve for each of six glue tracks. Glue dispensing volume is accurate and fast without glue drawing, drops or leakage;
    • Operation steps include: paving strips/placing tubes, glue dispensing/tubes coating, pressurization, separation, tubes picking and upside down placing;
    • Pressurizing time can be set on the touch screen of controller according to glue nature

    Technical Parameters

    Model

    TD-1206

    Working Range

    Max≤1200mm

    Moving Speed

    Max≤300mm/sec

    Repeat Accuracy

    ±0.05mm

    Power Source

    Pressed Air+Assisting Cylinder

    Glue Dispensing Volume

    Depends on Glue Viscosity

    Glue Container capacity

    2600ml Silicone Pressure Barrel

    Glue Viscosity

    Max≤20000CPS

    Control Mode

    PLC+Touch Screen

    Programming

    Teaching Programming

    Program Capacity

    At least 100 units,4000 points/unit

    Transmission Mode

    Stepping Motor+Synchronous Belt+Linear Guide-way

    Working Pressure

    0.5-0.8Mpa

    Working Power

    AC220V 50HZ/2000W

    Working Temperature

    0-40℃

    Working Humidity

    20-90% no condensation

    Dimension(W*D*H)

    3200*750*1550mm

    Weight

    About 300KG


    Suitable Glue: 2600ml single-component package for thermal conductive silicone

    Applications: LED T8 glass tube
