Zhongshan GDS Automation Equipment Co., Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | GDS |
| Model Number : | MG-8080 |
| Certification : | CE |
| Price : | CONTACT US |
| Payment Terms : | T/T |
| Supply Ability : | 30Pcs/Mon |
| Delivery Time : | 10 working days |
1:1 gray silicone glue potting for waterproof driver assembly automatic process
Machine Description
For electronics manufacturing, ensuring waterproof integrity for driver assemblies is no longer optional—it’s a necessity. Enter 1:1 gray silicone glue potting, a cutting-edge solution that combines precision, durability, and automation to redefine waterproofing standards.
Traditional potting methods often struggle with consistency and scalability, but the 1:1 mixing ratio of gray silicone glue eliminates these challenges. This two-part system—comprising a base and curing agent in equal parts—ensures a flawless chemical reaction, delivering uniform curing and robust adhesion. The gray glue not only provides a sleek, professional finish but also enhances UV resistance, making it ideal for outdoor applications like automotive lighting, industrial sensors, or marine electronics.
What truly sets this technology apart is its seamless integration into automated assembly processes. Advanced robotic dispensing systems precisely meter, mix, and inject the silicone glue into driver housings, eliminating human error and boosting production efficiency. The automated workflow guarantees repeatable results, even in high-volume manufacturing, while reducing material waste.
Industries from automotive to renewable energy are adopting this automated 1:1 gray silicone potting process to meet IP68 and IP69 ratings effortlessly. Whether for LED drivers, power converters, or IoT devices, this innovation ensures reliability in the harshest environments while cutting costs through streamlined automation.
Upgrade your waterproofing strategy with 1:1 gray silicone glue potting—where precision meets productivity, and quality becomes a guarantee. Discover how automation can transform your driver assembly line today.
Machine Features
3 axis mechanical hands employ high precision linear movement module to ensure accurate movement and high repeat accuracy;
Touch screen operation plus handhold teaching programming case, easy to learn and operate;
According to the feature of products and production capacity requirement, fixture and glue delivery head can be customized.
Technical Parameters
| Model | MG-8080 |
| Working Range | 0～500mm/sec |
| Repeat Accuracy | ±0.02mm |
| Mixing Proportion | 100:100～100:10(1:1~10:1) |
| Metering Method | Precise Gear Pump or Screw Pump |
| Mixing Method | Static Mixing |
| Mixing Accuracy | ±1% |
| Glue Extrusion Accuracy | ±1% |
| Glue Container Capacity | 30L 304 Stainless Barrel |
| Glue Viscosity | Max≤20000CPS |
| Glue Additive Proportion | MAX≤100(Glue):100(Additive)(1:1) |
| Glue Additive Size | Max≤400tsp |
| Control Mode | PLC+Handhold Teaching Programming Case+Touch Screen |
| Programming | Teaching Programming |
| Program Capacity | At least 100 unit, 4000 points/unit |
| Transmission Method | Steeping Motor+Synchronous Belt+Linear Guide-way |
| Working Pressure | 0.5-0.8Mpa |
| Working Power | AC220V 50HZ/2000W(stirring,vacuuming, heating not included) |
| Working Temperature | 0-40℃ |
| Working Humidity | 20-90% no condensation |
| Dimension | 1680x1200x1600 mm(WxDxH) |
| Weight | About 350KG |
| Optional Functions | Glue container stirring, pre-heating, vacuum degassing, self-cleaning |

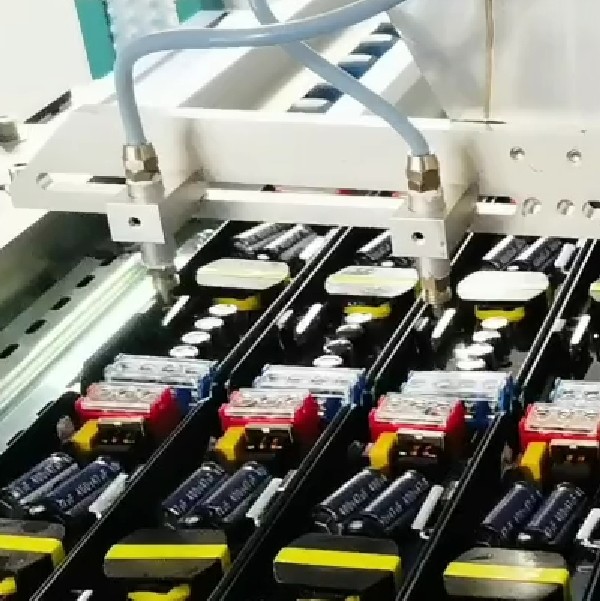

Machine Details
|
|
