Zhongshan GDS Automation Equipment Co., Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | GDS |
| Model Number : | MG-1280 |
| Certification : | CE |
| Price : | CONTACT US |
| Payment Terms : | T/T |
| Supply Ability : | 30Pcs/Mon |
| Delivery Time : | 10 working days |

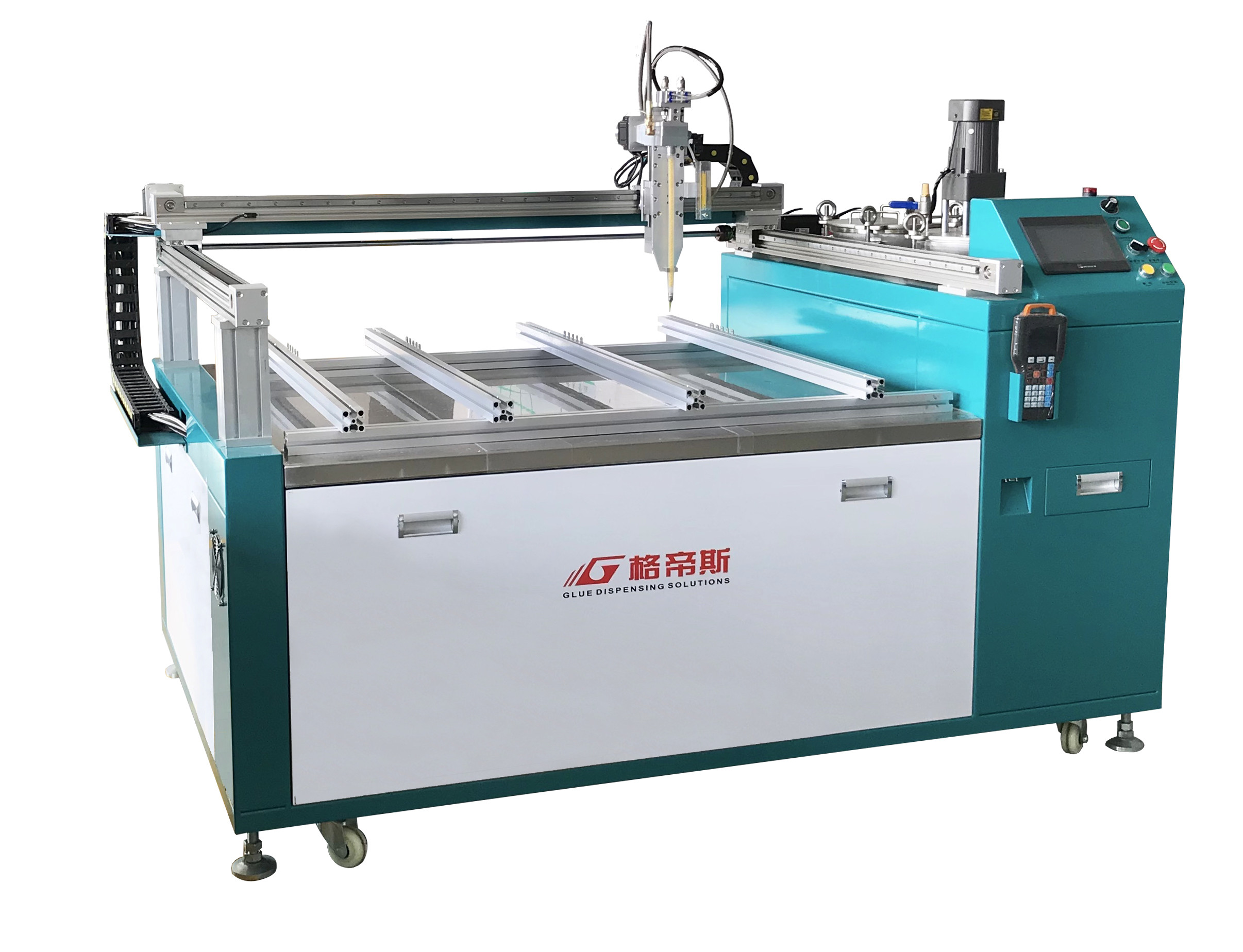

1:1 transparent silicone glue potting machine for LED linear lighting warer-proof glue coating
Machine Description
Linear light is widely used for outdoor or architecture outlook lighting shaping. For its special working enviroment, while keeping the best lighting performance and gurantee best water-proof IP degree, potting AB glue turns an effective solution. GDS 1:1 transparent silicone glue potting machine is designed for precise and efficient waterproofing. This glue potting machine features automated operation with adjustable potting parameters, ensuring uniform silicone or other kind of glue coverage to protect sensitive LED and lens from moisture, dust, and chemical exposure. Utilizing high-clarity silicone glue compounds, it forms a durable protective layer that maintains optical transparency while achieving IP67-grade sealing performance for long-term reliability in harsh environments. Specifically engineered for control board applications, the machine enables complete encapsulation of circuitry without compromising heat dissipation or electrical connectivity, critical for industrial automation systems and outdoor electronic installations requiring robust environmental protection
Machine Features
3 axis mechanical hands employ high precision linear movement module to ensure accurate movement and high repeat accuracy;
Touch screen operation plus handhold teaching programming case, easy to learn and operate;
According to the feature of products and production capacity requirement, fixture and glue delivery head can be customized.
Technical Parameters
| Model | MG-1280 |
| Working Range | 0～500mm/sec |
| Repeat Accuracy | ±0.02mm |
| Mixing Proportion | 100:100～100:10(1:1~10:1) |
| Metering Method | Precise Gear Pump or Screw Pump |
| Mixing Method | Static Mixing |
| Mixing Accuracy | ±1% |
| Glue Extrusion Accuracy | ±1% |
| Glue Container Capacity | 30L 304 Stainless Barrel |
| Glue Viscosity | Max≤20000CPS |
| Glue Additive Proportion | MAX≤100(Glue):100(Additive)(1:1) |
| Glue Additive Size | Max≤400tsp |
| Control Mode | PLC+Handhold Teaching Programming Case+Touch Screen |
| Programming | Teaching Programming |
| Program Capacity | At least 100 unit, 4000 points/unit |
| Transmission Method | Steeping Motor+Synchronous Belt+Linear Guide-way |
| Working Pressure | 0.5-0.8Mpa |
| Working Power | AC220V 50HZ/2000W(stirring,vacuuming, heating not included) |
| Working Temperature | 0-40℃ |
| Working Humidity | 20-90% no condensation |
| Dimension | 2280*1380*1500mm(WxDxH) |
| Weight | About 350KG |
| Optional Functions | Glue container stirring, pre-heating, vacuum degassing, self-cleaning |
Machine Details
|
|
