10:1 transparent silicone potting machine for LED wall-washer water-proof assembly
Machine Description

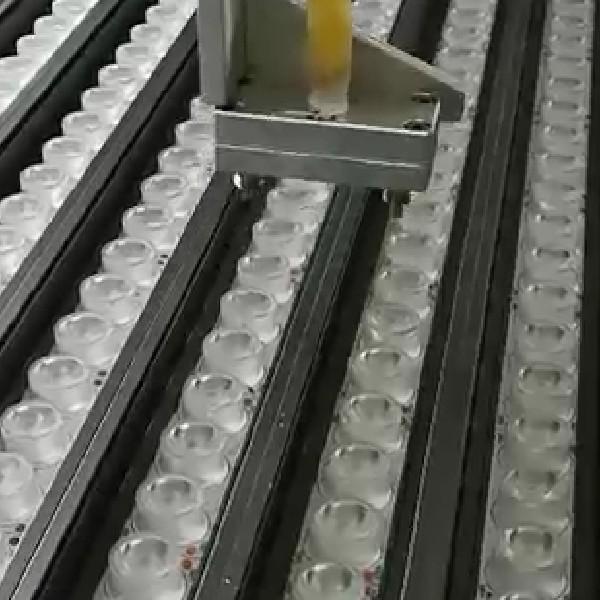

LED wall-washer water-proofing is realized by potting two parts glue. Some manufacturers use 1:1 transparent silicone, some manufacturers use 10:1 silicone, some use other kinds two parts glue. No matter which kind of AB glue used, AB glue potting machine is necessary for its automatic potting. It is capable of automatically metering, mixing and potting to wall-washer products. Greatly improving AB glue potting efficiency and saving material as the same time. GDS 10:1 transparent silicone glue potting machine is designed for precise and efficient waterproofing. This glue potting machine features automated operation with adjustable potting parameters, ensuring uniform silicone or other kind of glue coverage to protect sensitive LED and lens from moisture, dust, and chemical exposure. Utilizing high-clarity silicone glue compounds, it forms a durable protective layer that maintains optical transparency while achieving IP67-grade sealing performance for long-term reliability in harsh environments. Specifically engineered for control board applications, the machine enables complete encapsulation of circuitry without compromising heat dissipation or electrical connectivity, critical for industrial automation systems and outdoor electronic installations requiring robust environmental protection
Machine Features
3 axis mechanical hands employ high precision linear movement module to ensure accurate movement and high repeat accuracy;
Touch screen operation plus handhold teaching programming case, easy to learn and operate;
According to the feature of products and production capacity requirement, fixture and glue delivery head can be customized.
Technical Parameters
| Model | MG-8080 |
| Working Range | 0～500mm/sec |
| Repeat Accuracy | ±0.02mm |
| Mixing Proportion | 100:100～100:10(1:1~10:1) |
| Metering Method | Precise Gear Pump or Screw Pump |
| Mixing Method | Static Mixing |
| Mixing Accuracy | ±1% |
| Glue Extrusion Accuracy | ±1% |
| Glue Container Capacity | 30L 304 Stainless Barrel |
| Glue Viscosity | Max≤20000CPS |
| Glue Additive Proportion | MAX≤100(Glue):100(Additive)(1:1) |
| Glue Additive Size | Max≤400tsp |
| Control Mode | PLC+Handhold Teaching Programming Case+Touch Screen |
| Programming | Teaching Programming |
| Program Capacity | At least 100 unit, 4000 points/unit |
| Transmission Method | Steeping Motor+Synchronous Belt+Linear Guide-way |
| Working Pressure | 0.5-0.8Mpa |
| Working Power | AC220V 50HZ/2000W(stirring,vacuuming, heating not included) |
| Working Temperature | 0-40℃ |
| Working Humidity | 20-90% no condensation |
| Dimension | 1680x1200x1600 mm(WxDxH) |
| Weight | About 350KG |
| Optional Functions | Glue container stirring, pre-heating, vacuum degassing, self-cleaning |
