Zhongshan GDS Automation Equipment Co., Ltd.
1 Years
| Ask Lasest Price | |
| Supply Ability : | 30PCS/MONTH |
| Price : | CONTACT US |
| Brand Name : | GDS |
| Model Number : | JD-80 |
| Certification : | CE |
| Payment Terms : | T/T |
| Delivery Time : | 7 WORKING DAYS |

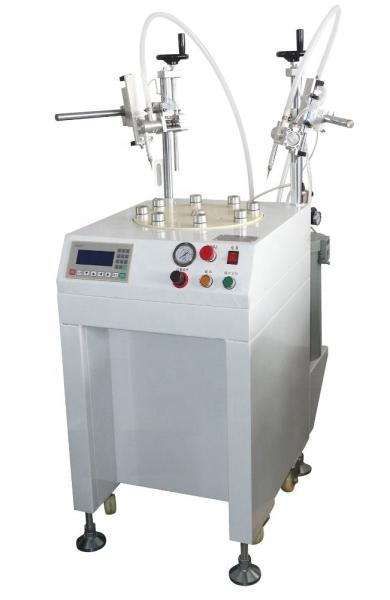

Automatic Glue Dispenser Machine for led bulb candle light round shape products
Principle Description
Eight stations are distributed on the revolution disc by 45 degree. The revolution motor rotates 90 degree each time to bring two work-pieces to the gluing nozzle. Auto-revolution motor drives two work-pieces rotating in average speed to achieve evenly glue coating.
Machine Features
Technical Parameters
Model | JD-80 |
MCU | Industrial PLC |
Programming | Text Demonstration Programmer |
Drive mode | Precise Stepping Motor |
Max Dispensing Diameter | 280mm(two-station), 200mm(four -station), 110mm(eight-station) |
Motor Speed | 0 ~ 300 RPM |
Positioning Accuracy | ±0.1mm |
Z-axis Adjust Range | 250mm |
Z-axis Route | 50mm |
Dimension (L*W*H) | 500mm*850mm*1300mm |
Weight | 50Kg |
Working Power | AC220V/50~60Hz/200W |
Working air pressure | 0.4~ 0.6Mpa(no condensation) |
Working Temperature and Humidity | Temperature: 0~40℃,Humidity: 20~90% |
Suitable Glue:300ml/2600ml single-component package for silicone, thermal-conductive silicone grease, UV glue, AB glue etc.
Applications:Round lights, such as LED bulbs, candle light, T8 glass tube cap, round panel light, PAR light etc.
Machine Details
|
|
