multi-heads glue dispensing robot automatic glue dispenser for 600*1200mm panel assembly

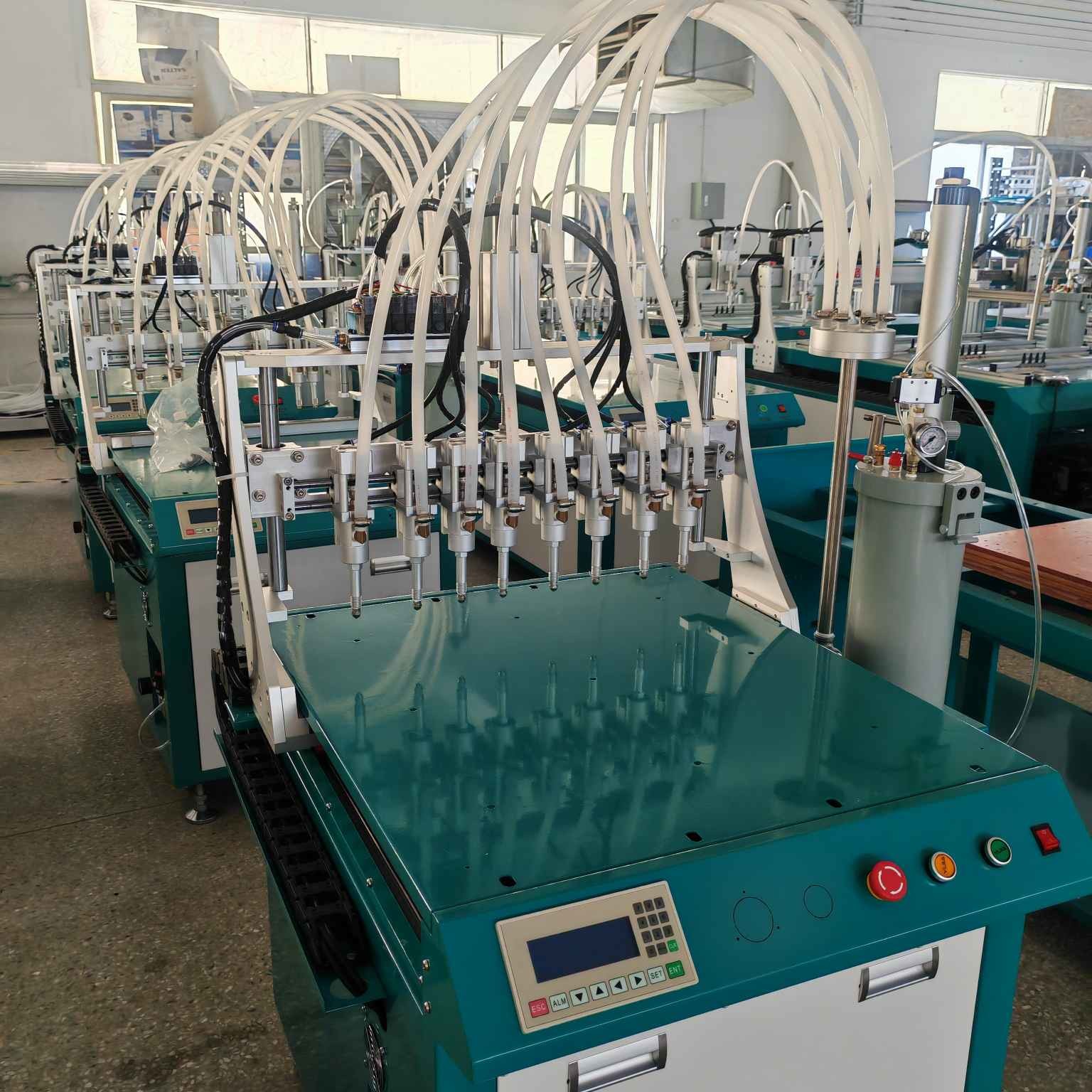

Machine description
This machine is for 600*1200mm and below size back-lit panel light gluing. With this machine, glue can be applied at the panel board, then arrange other workers to put the PCB on the glue. Standard machine is with 6 dispensing heads. If require more, we can customise that. This machine is only part of back-lit panel light assembly. We also have many other machine required, like automatic gluing and PCB fixing machine,automatic screw locking machine etc.
Machine features
Technical parameters
Model | HTD-1265 |
MCU | Text Controller |
Programming | Teaching Programming |
Drive Mode | Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way |
Working Range(X*Y*Z) | 600*1200*100mm |
Max Moving Speed | MAX 500mm/sec |
Repeat Accuracy | ±0.02mm |
Program Memory Capacity | About 10000 units |
Dimension(L*W*H) | L2200*W800*H1200mm |
Weight | 220Kg |
Working Power | AC220V/50～60Hz/150W |
Working Air Pressure | 0.4 ~ 0.6Mpa (no condensation) |
Working Temperature and Humidity | Temperature: 0 ~ 40℃ Humidity:20 ~ 90% |
Machine details
|
|
