Multi Heads Dispensing Robots 500mm/sec Liquid Silicone Dispenser 150W For back lit panel

Ask Lasest Price
Brand Name :	GDS
Model Number :	HTD-1265-6
Certification :	CE
Price :	Contact US
Payment Terms :	T/T
Supply Ability :	30PCS/Month
Delivery Time :	10 working days

Add to Cart

Product Details
Company Profile

Multi Heads Dispensing Robots 500mm/sec Liquid Silicone Dispenser 150W For back lit panel

multi-heads glue dispensing robot for 2x4 back-lit panel light assembly silicone applying

Machine Description

‌GDS multi-heads glue dispensing machine‌ streamlines high-efficiency adhesive application for ‌2X4 back-lit panels‌, which share identical assembly processes with 2X2 and 2X1 variants, differing only in dimensions‌. Designed to align with diverse manufacturing requirements, the system adapts seamlessly to configurations using 6, 8, or custom PCB strips, with silicone glue lines precisely matched to the number of strips.

‌Key Features:‌

‌Versatile Scalability‌:
- A single ‌2X4 machine‌ accommodates smaller panels (e.g., 2X2 or 2X1) by processing multiple units simultaneously on its platform, multiplying throughput.
- Independent control of each dispensing head enables parallel or staggered operations, ensuring flexibility for mixed-batch production.
‌Cost and Labor Efficiency‌:
- Automated workflows reduce dependency on skilled labor, cutting operational costs by 30–50% while achieving longtime production capabilities.
- Modular design supports rapid reconfiguration for panel sizes up to 603×1213mm

‌Application Scenarios‌:

‌High-Volume Electronics‌: Ideal for mass-producing back-lit panels in consumer electronics, where speed and consistency are paramount.
‌Customized Batches‌: Enables small-scale manufacturers to optimize glue dispensing for niche panel dimensions without retooling.

By integrating adaptive automation and precision engineering, the ‌GDS system‌ elevates productivity while reducing glue consumption, labor expenses, and cycle times—positioning it as a cornerstone of modern panel assembly lines‌

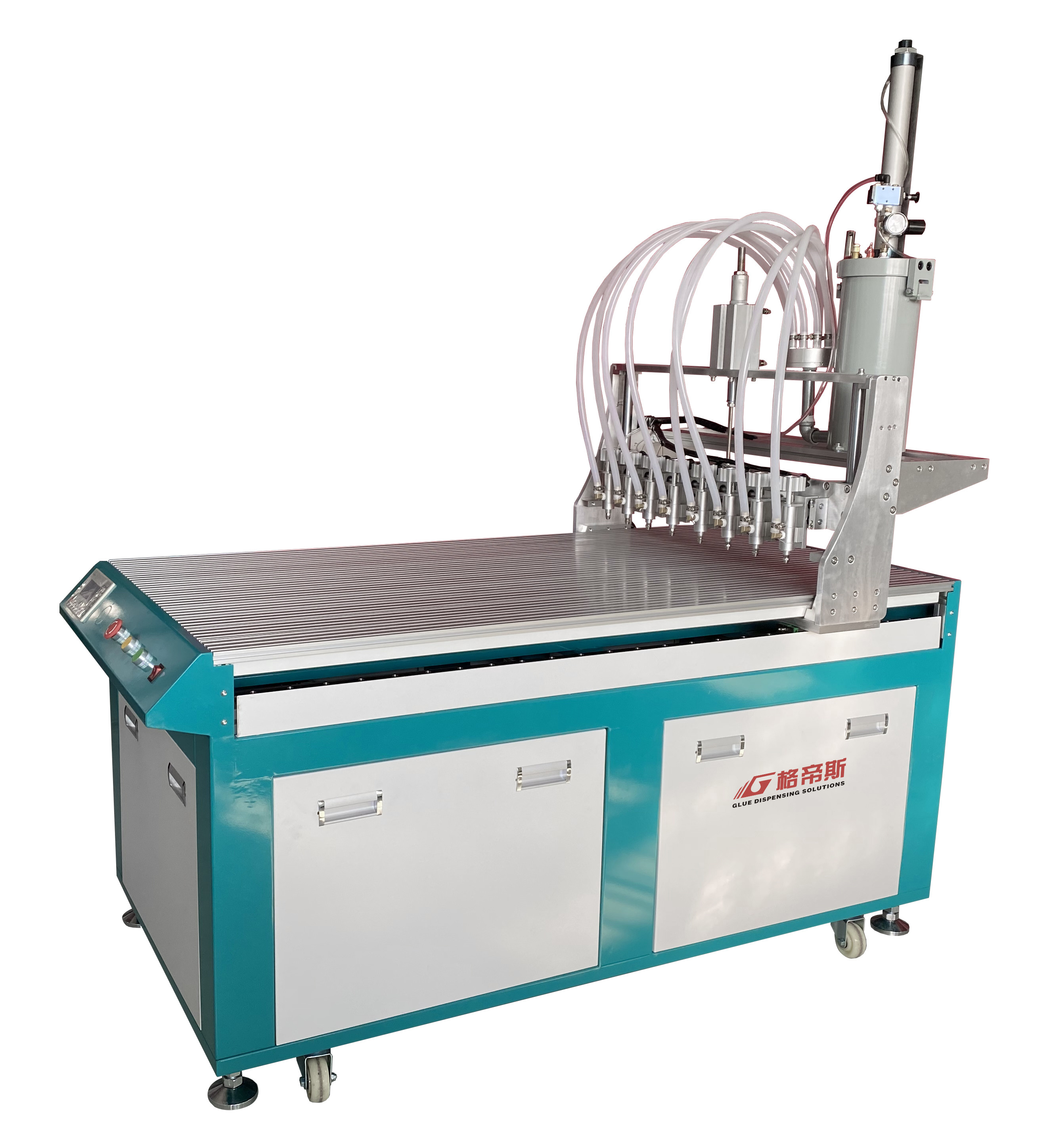

Machine Features

Floor stand design with castor, easy to move to match assembly line
Fixed working platform, convenient to pick and place work-piece
wide working range(600*600MM), can fit for one piece panel
program setting is easy to learn and operate;
Glue flow is stable without leakage anddrawing.

Multi Heads Dispensing Robots 500mm/sec Liquid Silicone Dispenser 150W For back lit panel

Technical Parameters

Model	HTD-1265-6
MCU	Text Controller
Programming	Teaching Programming
Drive Mode	Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way
Working Range(XYZ)	600600100mm
Max Moving Speed	MAX 500mm/sec
Repeat Accuracy	±0.02mm
Program Memory Capacity	About 10000 units
Dimension(LWH)	L2200W800H1200mm
Weight	220Kg
Working Power	AC220V/50～60Hz/150W
Working Air Pressure	0.4 ~ 0.6Mpa (no condensation)
Working Temperature and Humidity	Temperature: 0 ~ 40℃ Humidity:20 ~ 90%

Machine Details

Multi Heads Dispensing Robots 500mm/sec Liquid Silicone Dispenser 150W For back lit panel
