High speed glue dispenser automatic 3 Axis dispensing robot
Principle Description
u Put the work-piece on the moving platform by the designed fixture, the working platform and gluing nozzle move as programmed track to coat the work-piece accurately by compressed air. back-lit panel light size are 2 feet by 2 feet or 2 feet by 4 feet
Machine Features
Technical Parameters
Model | TD-1560 |
MCU | Three-axis Movement Controller |
Programming | Teaching Programming |
Drive Mode | Precise Stepping Motor+ Synchronous Belt+ Linear Guide-way |
Working Range(X*Y*Z) | 1500*600*100mm(Non-STD size can be customized) |
Max Moving Speed | MAX 500mm/sec |
Repeat Accuracy | ±0.02mm |
Program Memory Capacity | About 10000 units |
Dimension(L*W*H) | 2200*800*1200mm |
Weight | 150Kg |
Working Power | AC220V/50~60Hz/150W |
Working Air Pressure | 0.4 ~ 0.6Mpa(no condensation) |
Working Temperature and Humidity | Temperature: 0 ~ 40℃ Humidity:20 ~ 90% |
Suitable Glue: 300ml or 2600ml single-component package for silicone, thermal conductive silicone grease, UV glue, AB glue etc.
Applications:Big size products, such as LED wash wall light, flood light, ceiling light, outdoor wall light, car headlight, smoke exhaust ventilator etc.

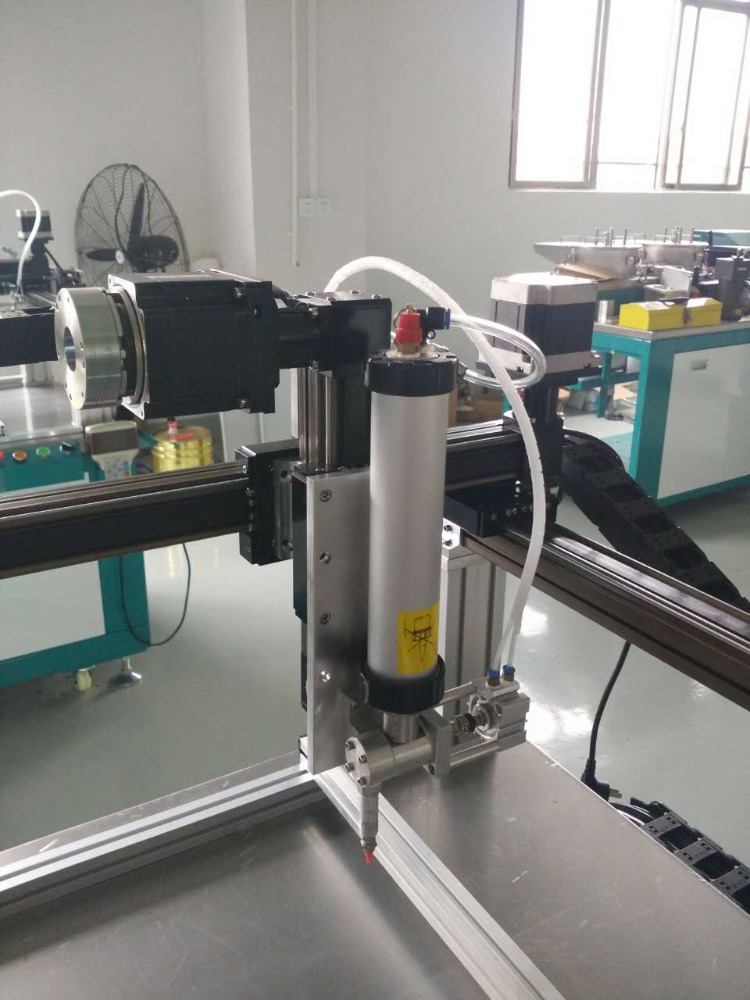

Machine Details
|
|
