    Desktop 3 Axis Dispensing Robot 0.4Mpa - 0.6Mpa Automatic Glue Dispenser 150W

    Ask Lasest Price
    Certification : CE
    Supply Ability : 30PCS/MONTH
    Price : CONTACT US
    Brand Name : GDS
    Model Number : TD-400
    Payment Terms : T/T
    Delivery Time : 7 WORKING DAYS
    • Product Details
    • Company Profile

    Desktop 3 Axis Dispensing Robot 0.4Mpa - 0.6Mpa Automatic Glue Dispenser 150W

    High speed and accuracy Desktop Three-axis Glue Dispensing Machine automatic glue dispenser

    Desktop 3 Axis Dispensing Robot 0.4Mpa - 0.6Mpa Automatic Glue Dispenser 150W

    Three-axis Glue Dispensing Machine is suitable for single component glue and can be used for flood light and other outdoor lights gluing. The working theory is as following. Put the work-piece on the moving platform by the designed fixture, the working platform and gluing nozzle move as programmed track to coat the work-piece accurately by compressed air.


    Machine Features

    • Desktop design with hand programming controller, easy to learn and operate;
    • Gluing track can be set as points, line, surface, full circle, arc and combinations etc;
    • The instructions can be copied and arrayed;
    • Equipped industrial PLC controller, for different glue with different settings ensure the best performance.
    • Glue flow is stable without leakage and drawing.

    Model

    TD-400

    MCU

    Three-axis Movement Controller

    Programming ModeTeaching programming case
    Drive Mode

    Precise stepping motor+synchronous belt+linear guide-way

    Working Range400(X)*400(Y)*100(Z)mm(Non-standard can be customized)

    Max Moving Speed

    MAX 500mm/sec

    Repeat Accuracy

    ±0.02mm

    Program Memory CapacityAbout 10000 unit

    Dimension

    L500*W850*H1300mm

    Weight50Kg
    Working PowerAC220V/50~60Hz/150W

    Working Air Pressure

    0.4 ~ 0.6Mpa(no condensation)

    Working Temperature and Humidity

    Temperature:0 ~ 40℃ humidity:20 ~ 90%

    Applications: Various lights, auto parts, digital products, optics lens, mechanic parts, semiconductor encapsulation etc.

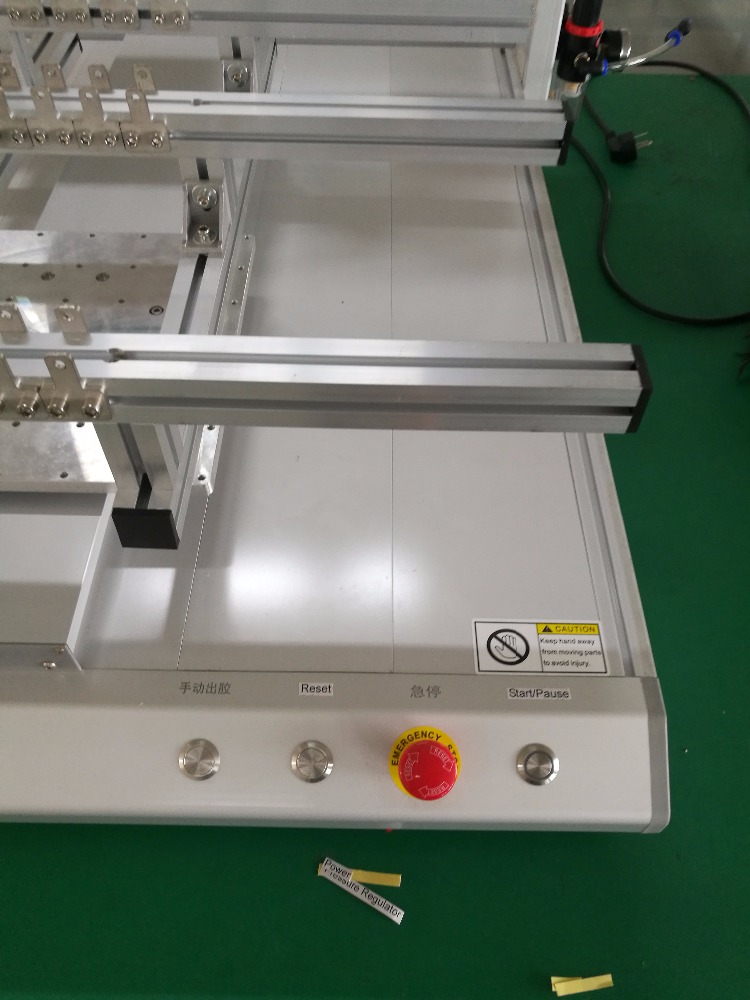

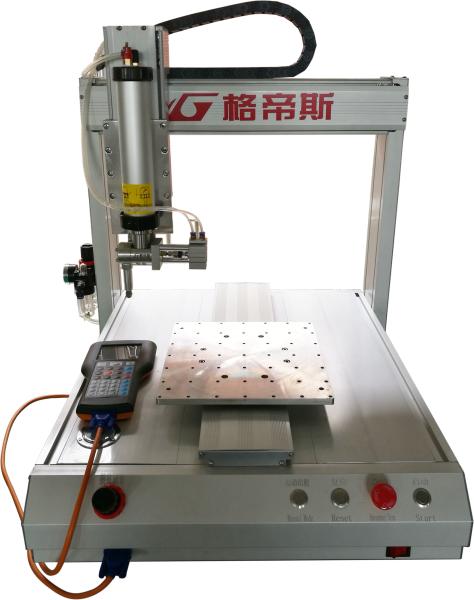

    Machine Details

    Desktop 3 Axis Dispensing Robot 0.4Mpa - 0.6Mpa Automatic Glue Dispenser 150W Desktop 3 Axis Dispensing Robot 0.4Mpa - 0.6Mpa Automatic Glue Dispenser 150W

    Desktop 3 Axis Dispensing Robot 0.4Mpa - 0.6Mpa Automatic Glue Dispenser 150W Desktop 3 Axis Dispensing Robot 0.4Mpa - 0.6Mpa Automatic Glue Dispenser 150W
