LED PAR Light Glue Dispensing Machine High Speed automatic glue dispenser

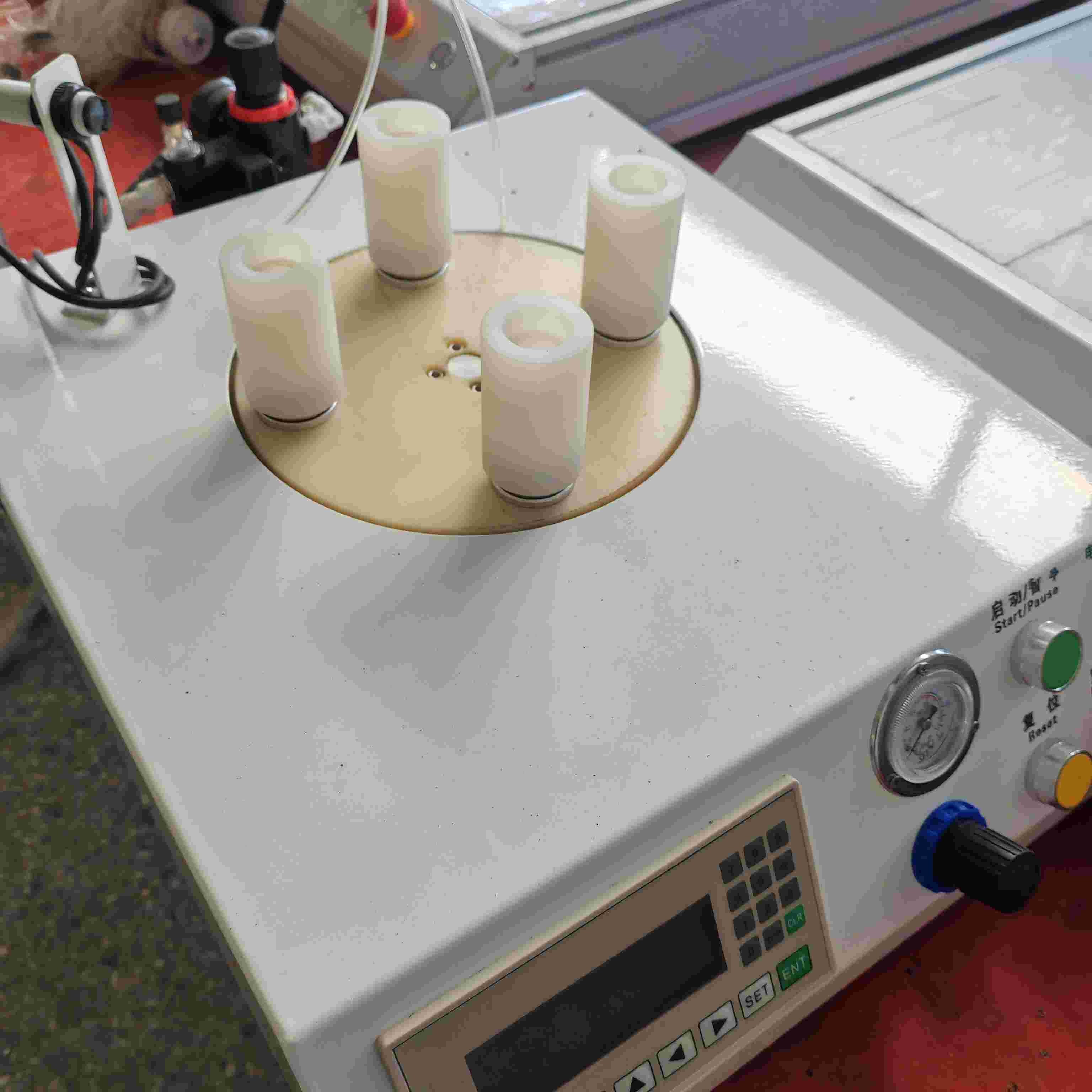

LED PAR light requires glue dispensing machine to apply glue on the light cup to connect with the glass cover. GDS Four-station round glue dispensing machine can be used for this application. Four stations are distributed by 90 degree on the revolution disc. Revolution motor rotates 90 degree each time to bring the work-piece to the gluing nozzle. Auto-rotation motor drives work-piece rotating in average speed to achieve evenly glue coating.
Machine Features:
Technical Parameters
Model | JD-40 |
MCU | Industrial PLC |
Programming | Text Demonstration Programmer |
Drive mode | Precise Stepping Motor |
Max Dispensing Diameter | 160mm(two station),110mm(four station) |
Motor Speed | 0 ~ 300 RPM |
Positioning Accuracy | ±0.1mm |
Z-axis Adjust Range | 250mm |
Z-axis Working Travel | 50mm |
Dimension (L*W*H) | 420mm*532mm*532mm |
Weight | 35Kg |
Working Power | AC220V/50~60Hz/200W |
Working Air Pressure | 0.4~ 0.6Mpa(no condensation) |
Working Temperature and Humidity | Temperature: 0~40℃,Humidity: 20~90% |

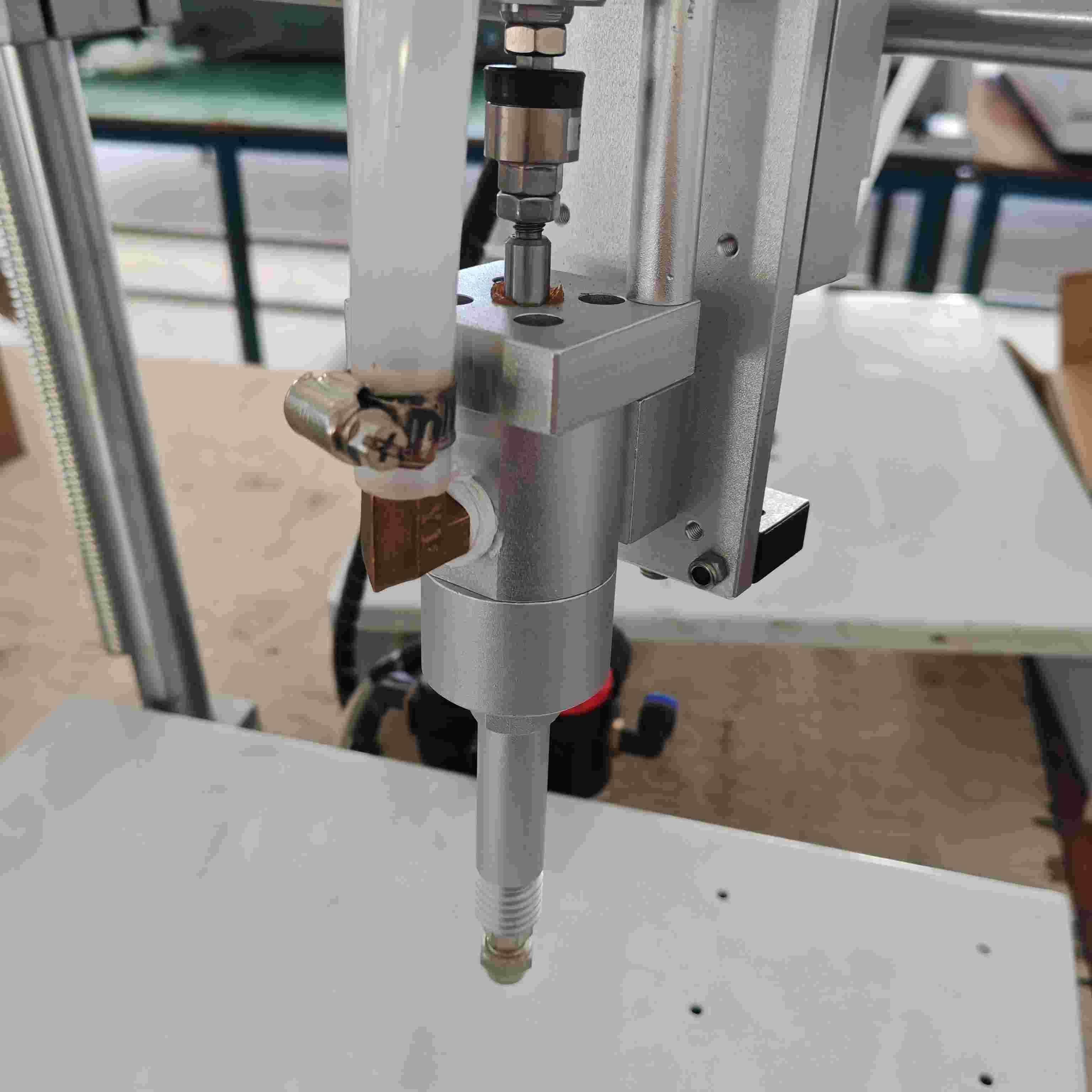

Machine Details
|
|
