Full Automatic AB Glue Potting Machine with wide working range1200*800mm
Machine description
Machine Feature
3 axis mechanical hands employ high precision linear movement module to ensure accurate movement and high repeat accuracy;
Touch screen operation plus handhold teaching programming case, easy to learn and operate;
According to the feature of products and production capacity requirement, fixture and glue delivery head can be customized.
Technical Parameters
Model | MG-1280 |
Working Range | 1200*800*100mm(X*Y*Z) |
Moving Speed | 0~500mm/sec |
Repeat Accuracy | ±0.02mm |
Mixing Proportion | 100:100~100:10(1:1~10:1) |
Metering Method | Precise Gear Pump or Rotary Plunger Pump |
Mixing Method | Static Mixing or Dynamic Mixing(based on glue nature) |
Mixing Accuracy | ±1% |
Glue Extrusion Accuracy | ±1% |
Glue Container Capacity | 30L 304 Stainless Barrel |
Glue Viscosity | Max≤20000CPS |
Glue Additive Proportion | MAX≤100(Glue):100(Additive)(1:1) |
Glue Additive Size | Max≤400tsp |
Control Mode | PLC+Handhold Teaching Programming Case+Touch Screen |
Programming | Teaching Programming |
Program Capacity | At least 100 unit, 4000 points/unit |
Transmission Method | Steeping Motor+Synchronous Belt+Linear Guide-way |
Working Pressure | 0.5-0.8Mpa |
Working Power | AC220V 50HZ/2000W(stirring,vacuuming, heating not included) |
Working Temperature | 0-40℃ |
Working Humidity | 20-90% no condensation |
Dimension | 1680x1200x1600 mm(WxDxH) |
Weight | About 350KG |

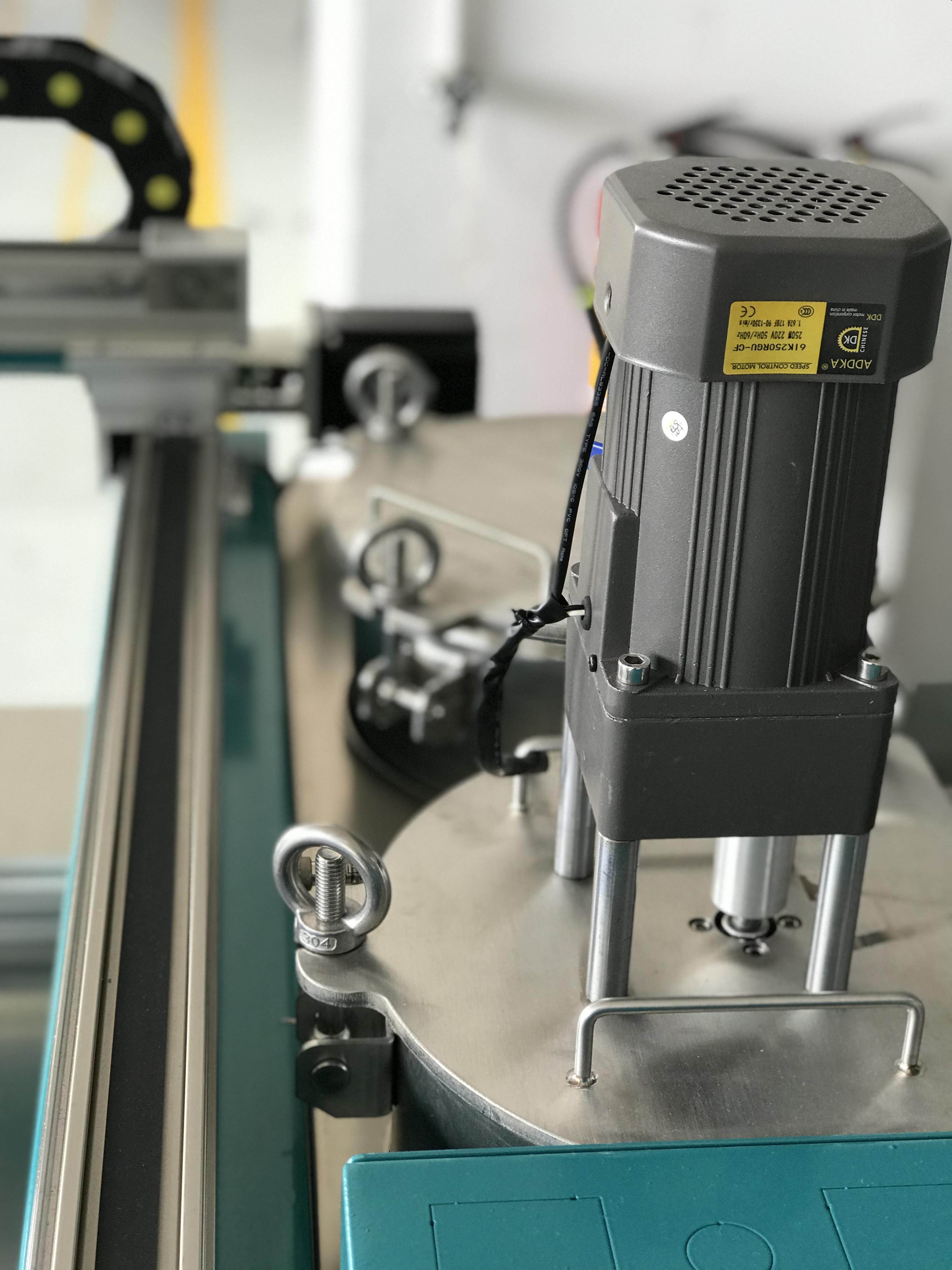

Optional Functions | Glue container stirring, pre-heating, vacuum de-foaming, automatic cleaning |
Suitable Glue: two component glue, such as organic silicone, epoxy, PU, acrylate etc.
Applications:Small size products with small volume of glue, such as LED display, wall washer light, line light, Ads module, nixie tube, mutual inductor, transformer, power module, photo-voltaic module, automobile head light, daytime running light, negative-ion generator, crystal photo frame etc.
|
|
