Zhongshan GDS Automation Equipment Co., Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | GDS |
| Model Number : | MG-315 |
| Certification : | CE |
| Price : | CONTACT US |
| Payment Terms : | T/T |
| Supply Ability : | 30Pcs/Mon |
| Delivery Time : | 10 working days |

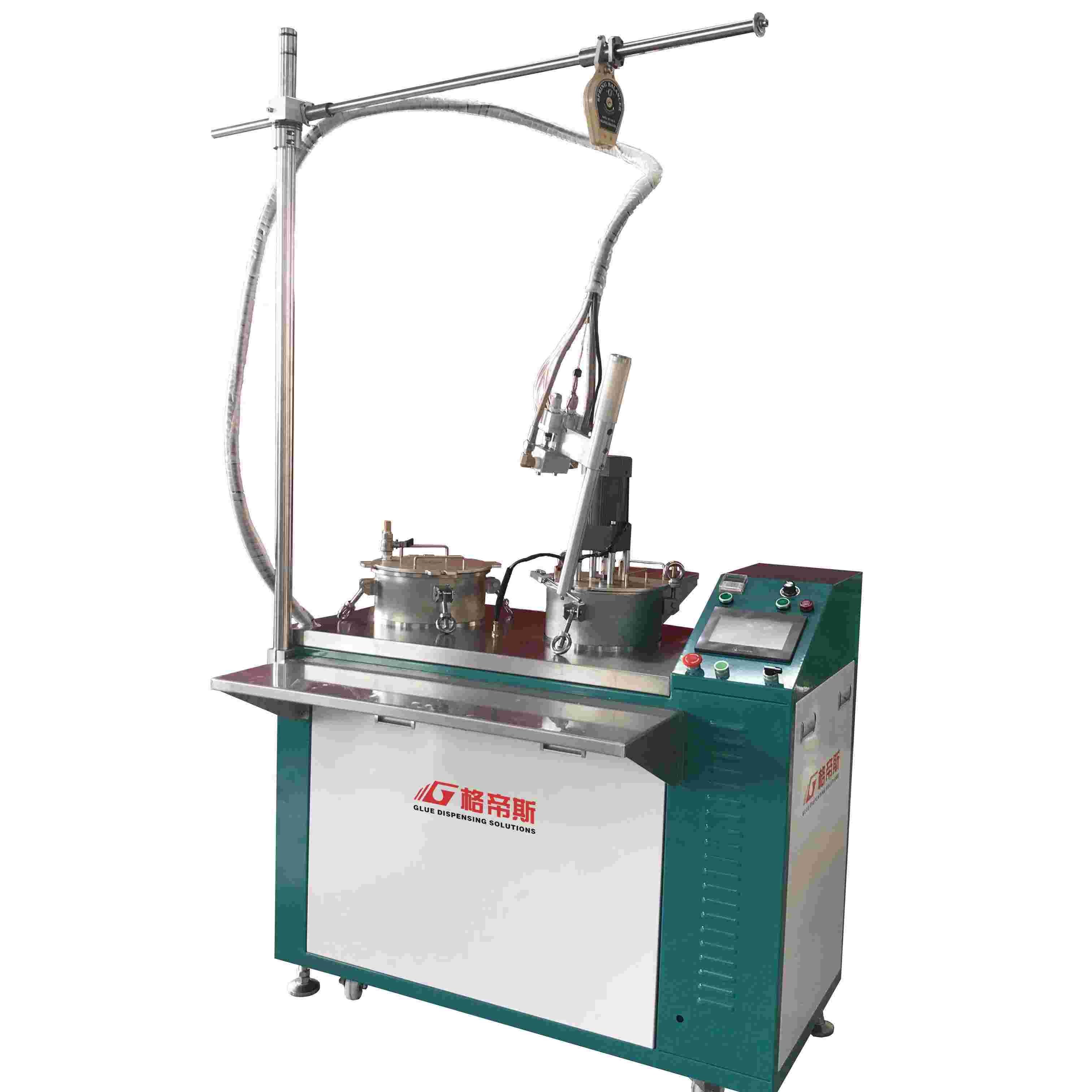

AB glue automatic potting machine for power chager base two parts glue filling
Machine Description
Ensure durability and reliability in power charger production with an AB glue automatic potting machine. Designed for two-part epoxy encapsulation, this system eliminates manual errors, delivering precision, speed, and consistency.
Why Automate?
Key Features
Boost Efficiency, Cut Costs
Ideal for: High-demand electronics manufacturers seeking scalable, future-ready solutions.
Upgrade Today—Stay Ahead
Transform your potting process with unmatched accuracy and speed.
Request a demo now to see the difference!
Machine Features
handhold-control glue volume, flexible to meet different product glue potting
Touch screen operation plus handhold teaching programming case, easy to learn and operate;
According to the feature of products and production capacity requirement, fixture and glue delivery head can be customized.
Technical Parameters
| Model | MG-315 |
| Working Range | 0～500mm/sec |
| Repeat Accuracy | ±0.02mm |
| Mixing Proportion | 100:100～100:10(1:1~10:1) |
| Metering Method | Precise Gear Pump or Screw Pump |
| Mixing Method | Static Mixing |
| Mixing Accuracy | ±1% |
| Glue Extrusion Accuracy | ±1% |
| Glue Container Capacity | 30L 304 Stainless Barrel |
| Glue Viscosity | Max≤20000CPS |
| Glue Additive Proportion | MAX≤100(Glue):100(Additive)(1:1) |
| Glue Additive Size | Max≤400tsp |
| Control Mode | PLC+Handhold Teaching Programming Case+Touch Screen |
| Programming | Teaching Programming |
| Program Capacity | At least 100 unit, 4000 points/unit |
| Transmission Method | Steeping Motor+Synchronous Belt+Linear Guide-way |
| Working Pressure | 0.5-0.8Mpa |
| Working Power | AC220V 50HZ/2000W(stirring,vacuuming, heating not included) |
| Working Temperature | 0-40℃ |
| Working Humidity | 20-90% no condensation |
| Dimension | 1500*950*1500mm |
| Weight | About 350KG |
| Optional Functions | Glue container stirring, pre-heating, vacuum degassing, self-cleaning |
Machine Details
|
|
