3 axis glue dispensing robot employeed for LED wall-washer or similar linear lights assembly

Machine Description

The 3-axis glue dispensing robot is a specialized automation solution designed for precision adhesive applications in LED wall-washers and linear lighting assemblies. This system integrates XYZ-axis linear motion control to enable accurate glue deposition along complex linear or curved paths, ensuring uniform encapsulation of LED modules and electronic components. Speacially for wall-washer housing and glass cover bonding process. This 3 axis glue dispensing robot can glue for perfect straight line or rectangular glue path.

These robots feature high-resolution servo motors and tactile feedback mechanisms that maintain ±0.1mm positional accuracy, essential for delicate optical component assembly. The programmable logic controller allows customized dispensing patterns, including continuous beads and intermittent dots, adapting to diverse LED housing geometries.

Specifically optimized for LED wall-washer manufacturing, the machine accommodates multi-point simultaneous dispensing through modular nozzle configurations, reducing cycle times by 40% compared to manual operations.

The compact three-axis design allows seamless integration into existing production lines, with optional fourth-axis rotary tables available for cylindrical lighting fixtures.

Machine Features

• Floor stand design with wide working range(1200*800MM), suitable for big size work-piece;
• Equipped hand programming controller, easy to learn and operate;
• The instructions can be copied and arrayed;
• Equipped industrial PLC controller, for different glue with different settings ensure the best performance;
• Glue flow is stable without leakage and drawing.

Technical Parameters

Glue applicable

300ml package silicone or 2600ml package silicone

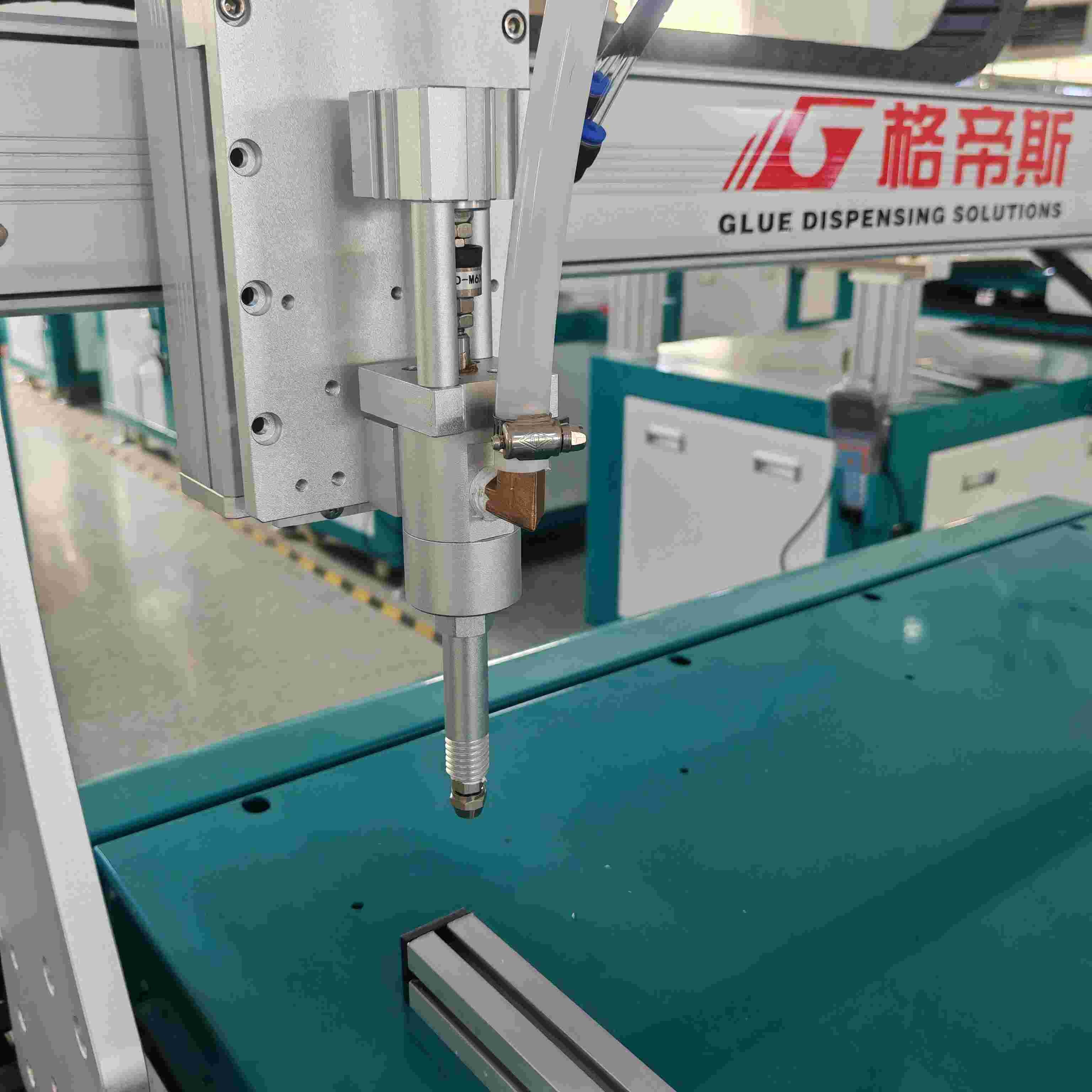

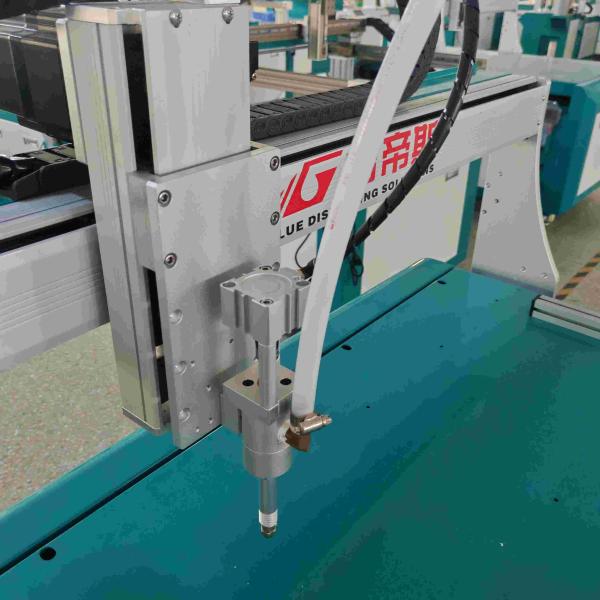

Machine Details

Zhongshan GDS Automation Equipment Co., Ltd. is a leading manufacturer specializing in the research, production, and sales of high-precision automated glue dispensing and potting equipment. Established in Zhongshan Xiaolan, Guangdong Province—adjacent to the renowned "Light Capital" Guzhen. GDS has positioned itself as a key player in China's fluid control and automation industry.

Key Features and Strengths:

1. Technical Expertise:
   GDS boasts a team of experienced engineers with over a decade of expertise in fluid control technology, developing cutting-edge solutions, which ensure precise control over glue volume, speed, and flow. Its proprietary equipment includes multi-axis dispensing robots, automated AB glue potting machine, automatic screw locking machine, customized assembly line etc significantly enhancing production efficiency.

2. Advanced Manufacturing Capabilities:
   Equipped with state-of-the-art machinery (e.g., laser cutting machines, CNC milling tools), GDS ensures high precision and durability in its products. The company emphasizes customization, offering tailored solutions like multi-head dispensing systems and rotary workstations to meet diverse industrial needs, such as 2x2 LED panel light assembly line and waterproof driver automatic AB Glue potting line

3. Market Leadership:
   GDS dominates the LED lighting automation sector, providing specialized equipment like full-automatic panel light assembly lines, T8 glass tube dispensers, and waterproof driver potting lines. Its products are also widely adopted in automotive electronics, home appliances, and renewable energy industries. Notably, the company has expanded its global footprint, with significant exports to markets like India, Turkey, Rusia, Mexico etc.

4. Quality and Certification:
   Recognized as a "National High-Tech Enterprise" and listed in the "Zhongshan Mother Machine Bank," GDS adheres to stringent quality standards. Its equipment is designed to address industry challenges such as low production efficiency and high labor costs, aligning with trends toward miniaturization and cost-effective manufacturing

5. Customer-Centric Services:
   GDS prioritizes customer satisfaction through comprehensive pre-sale consultations, on-site installation, operator training, and 24/7 after-sales support. This commitment has solidified its reputation for reliability and innovation in automation solutions
