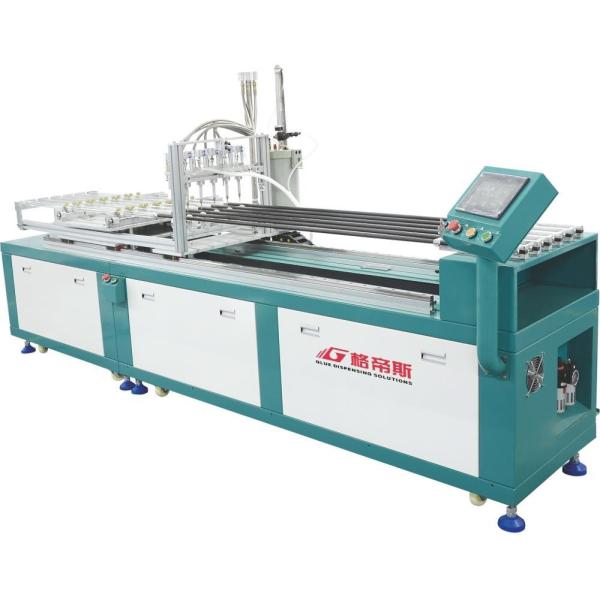

T8 glass tube glue dispensing machine, automatic glue dispenser for
T8 glass tube, 400pcs/h capacity
GDS basic glue dispensing machine for T8 glass tube working theory

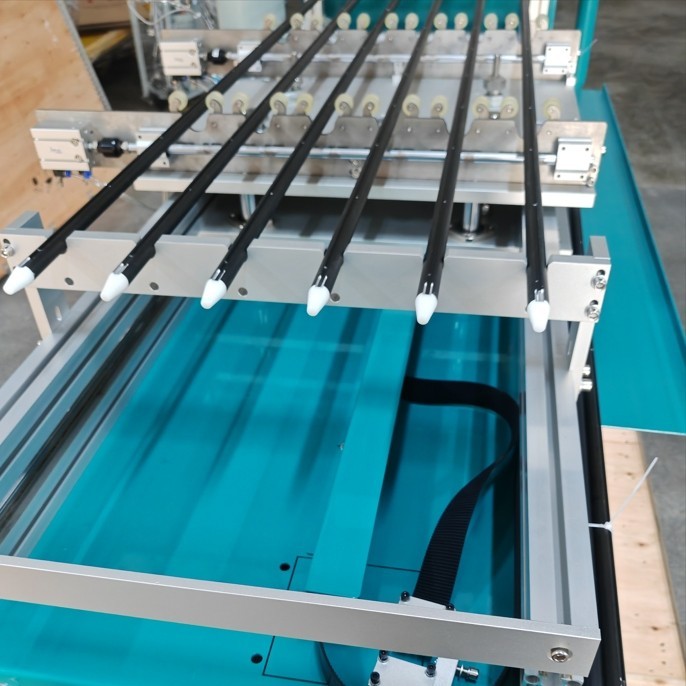

is as following. Put six PCB strips downside on the fixture sticks. Six PCB strips on the fixture sticks are being glued while being inserted to the glass tube. The tubes press down for few seconds and stick with PCBs. The whole
process is finished when the sticks are pulled out and tubes are
transferred to the next work station. That's how T8 glass tube glue
dispensing machine works. GDS automatic glue dispenser can
perfectly replace manual operation to get glass tube and PCB strip
sticked together tightly.
Machine Features
Technical Parameters
Model | TD-1206 |
Working Range | Max≤1200mm |
Moving Speed | Max≤300mm/sec |
Repeat Accuracy | ±0.05mm |
Power Source | Pressed Air+Assisting Cylinder |
Glue Dispensing Volume | Depends on Glue Viscosity |
Glue Container capacity | 2600ml Silicone Pressure Barrel |
Glue Viscosity | Max≤20000CPS |
Control Mode | PLC+Touch Screen |
Programming | Teaching Programming |
Program Capacity | At least 100 units,4000 points/unit |
Transmission Mode | Stepping Motor+Synchronous Belt+Linear Guide-way |
Working Pressure | 0.5-0.8Mpa |
Working Power | AC220V 50HZ/2000W |
Working Temperature | 0-40℃ |
Working Humidity | 20-90% no condensation |
Dimension | 3200*750*1550mm(WxDxH) |
Weight | About 300KG |

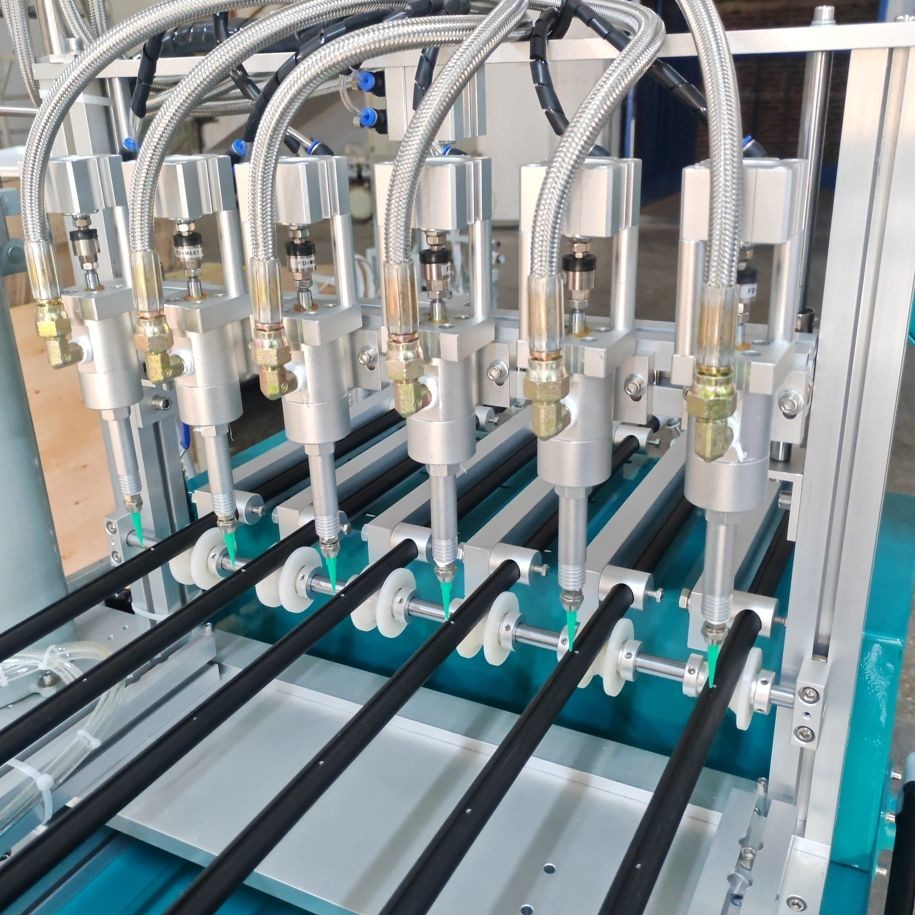

Machine Details
|
|
