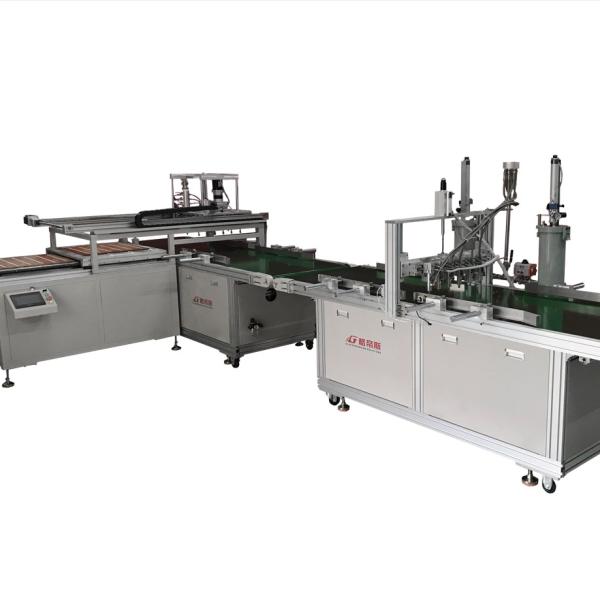

2x2 panel light production line with function of glue dispensing and PCB bonding
Machine Description
This advanced production line is specifically engineered for high-efficiency manufacturing of 2x2-foot LED panel lights, incorporating precision glue dispensing and automated PCB bonding technologies. The system features a fully synchronized workflow that begins with automatic material feeding, followed by silicone glue application through programmable multiple dispensers to ensure optimal PCB strips adhesion. The integrated PCB bonding module employs vacuum-assisted alignment and thermal compression to achieve high accuracy in PCB and housing bonding, guaranteeing perfect electrical connections and structural integrity.Tthis production line ensures consistent output quality while maintaining high production capacity. The modular design allows quick changeovers for different panel light specifications, making it ideal for manufacturers seeking scalable, high-mix-low-volume production capabilities with minimal downtime.
Technical Parameters
Model | TC-60 |
MCU | Movement Controller+PLC |
Programming | Touch screen |
Drive mode | Servo motor,stepping motor, adjustable-speed motor |
Max working range | 600*600*80mm |
Positioning accuracy | ±0.2mm |
Dimension | Lmax5500mm*Wmax2300mm*Hmax1500mm |
Weight | 700Kg |
Working power | AC220-380V/50～60Hz/ 3500W |
Working pressure | 0.4 ~ 0.6Mpa(no condensation) |
Working temperature and humidity | Temperature:0 ~ 40℃ humidity:20 ~ 90% |
Machine Details
|
|
