    200W Custom Assembly Machine Semi Automatic LED Bulb Assembly Machine 220V

    Ask Lasest Price
    Supply Ability : 15PCS/MONTH
    Price : CONTACT US
    Brand Name : GDS
    Model Number : JCD-90
    Certification : CE
    Payment Terms : T/T
    Delivery Time : 15WORKING DAYS
    • Product Details
    • Company Profile

    200W Custom Assembly Machine Semi Automatic LED Bulb Assembly Machine 220V

    LED bulb semi-automatic assembly line punching gluing and housing assembly line

    200W Custom Assembly Machine Semi Automatic LED Bulb Assembly Machine 220V

    Machine Features

    • Floor stand design with caster, the machine is stable and easy to move;
    • Integrate punching, gluing and housing assembly process, work in cycle, the designed capacity is 1000pcs/h;
    • Equipped with work piece detector to decide working or skipping
    • Gluing track can be set as full circle, single point or segmented arc etc.
    • Working mode can be two-station, four-station or eight-station;
    • It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.

    Technical Parameters

    Model

    JCD-90

    MCU

    Industrial PLC

    Programming

    Text Demonstration Programmer

    Drive mode

    Precise Stepping Motor

    Max Dispensing Diameter

    280mm(two-station),

    200mm(four -station), 110mm(eight-station)

    Motor Speed

    0 ~ 300 RPM

    Positioning Accuracy

    ±0.1mm

    Z-axis Adjust Range

    250mm

    Z-axis Working Travel

    50mm

    Dimension (L*W*H)

    L680mm*W700mm*H1520mm

    Weight

    190Kg

    Working Power

    AC220V/50~60Hz/200W

    Working Air Pressure

    0.4~ 0.6Mpa(no condensation)

    Working Temperature and Humidity

    Temperature: 0~40℃ Humidity: 20~90%

    Suitable Glue: 300ml/2600ml single-component package for silicone

    Applications: LED bulb

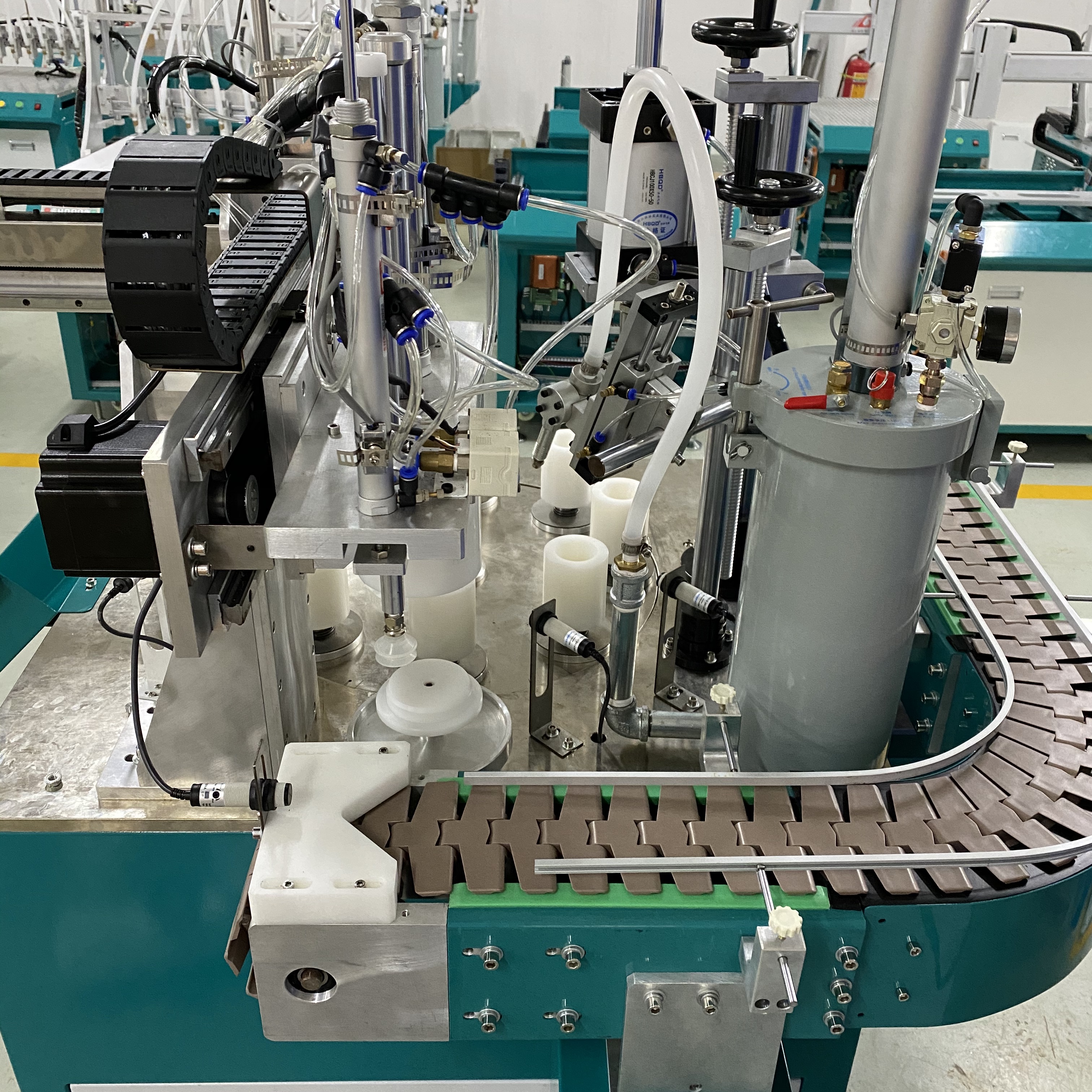

    Machine Details

    200W Custom Assembly Machine Semi Automatic LED Bulb Assembly Machine 220V 200W Custom Assembly Machine Semi Automatic LED Bulb Assembly Machine 220V200W Custom Assembly Machine Semi Automatic LED Bulb Assembly Machine 220V 200W Custom Assembly Machine Semi Automatic LED Bulb Assembly Machine 220V
